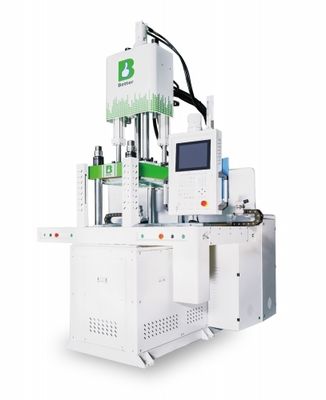

| Brand Name: | Better |
| Model Number: | Better 850SD、216 |
| MOQ: | 1 SET |
| Price: | Negotiation |
| Payment Terms: | T/T,D/P,D/A,L/C |
| Supply Ability: | 15 sets per month |
| Characteristics | A/B ratio 1:1 |
|---|---|
| Item No | Better 216 |
| Shot volume | 0 - 1500g |
| Material | 20L / 200L |
| Ratio | 1:1 |
| Motor source | Hydraulic |
| Size | 1375 x 1030 x 2280 |
| Weight | 850KG |
| Mix mode | Static Mixing |
| Work style | Plunger pump |
| Application | ALL |
| Clamping force | 85tons |
|---|---|
| Size | 1135*495mm |
| Max mold size | 500*475mm |
| Min mold height | 210+50mm |
| Mold stroke | 250mm |
| Max daylight | 460+50mm |
| Ejector force | 3tons |
| Thimble diameter | Φ25 |
| Ejector distance(product) | 105(75)mm |
| Max hydraulic pressure | 140kg/cm2 |
| Cooling water | 1500-1800liters/hr |
| Heater Power | 4kw |
| Motor Power | 13kw |
| Dimension (L*W*H) | 2.17*2.23*2.83 |
| Weight | 4.5tons |
1) Eliminates traditional rubber molding steps like mixing and pre-molding, saving manpower, resources, and energy while reducing equipment investment and floor space requirements.
2) Enables fully automated, closed-system processing that minimizes human error and environmental contamination, ensuring product dimensional accuracy and internal quality - particularly beneficial for medical applications.
3) Low viscosity (10-1000pas) allows excellent flow characteristics with injection pressures as low as 1MPa, enabling flash-free production of large, complex, or ultra-thin products (down to 0.5mm thickness).
4) Rapid curing (160-220 seconds to several minutes) enables short cycle times and high production efficiency.
5) Requires minimal back pressure (<1.5MPa) due to low viscosity and gas content, preventing density issues in unvulcanized silicone.
6) Features predictable 2-3% post-cooling shrinkage (material-dependent), allowing designers to account for dimensional changes during product development.
