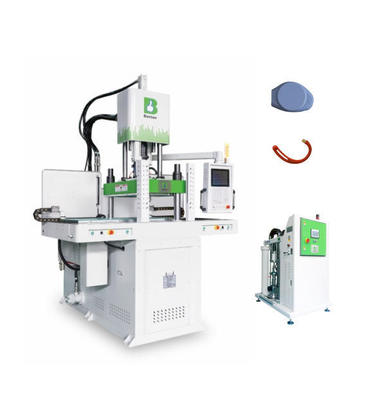

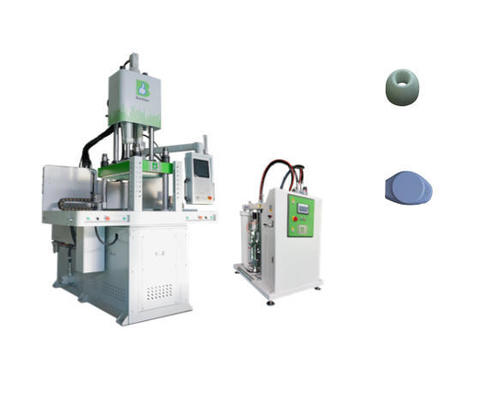

Liquid Silicone Rubber LSR Injection Molding Machine High Precision

Brand Name:	Better
Model Number:	Better 1200
MOQ:	1 SET
Price:	USD42000-USD82000per set
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO

Economic Benefits:

Obvious--30-50% Electricity Can Be Saved

Motor:

Servo Motor

Warranty Time:

12 Months

Color:

Gray & Green

Packaging Details:

Plastic film

Highlight:

Rubber LSR Injection Molding Machine

Silicone LSR Injection Molding Machine

High Precision lsr molders

Product Description

Liquid Silicone Rubber Earbud Molding Machine High-Precision LSR Earphone Silicone Sleeve Production Equipment

Guangzhou S-guangyu Machinery Equipment Co., Ltd. specializes in manufacturing equipment for liquid silicone rubber products. Established in 2010, the company boasts a core team with over 20 years of industry experience and has achieved annual sales growth exceeding 30%.

Company Overview

Our scope encompasses:

Liquid silicone injection moulding machines
Liquid silicone feeding systems
Solid-to-liquid conversion equipment
Automated part removal systems
Complete liquid silicone production suites

We provide comprehensive liquid silicone moulding solutions and automated production systems. The company employs 70 staff, including 43 production personnel, 12 sales representatives, 10 R&D & technical engineers, and 5 after-sales engineers.

Integrated Manufacturing Solutions

S-guangyu provides integrated machinery, mold, and support services for manufacturing daily parts:

Independent double-cylinder injection system ensures injection stability and allows different glue injection
Independent direct pressure clamping unit accommodates different mold thicknesses
Mechanical positioning device ensures accurate positioning and mold protection
Flexible independent system design allows single-mode production
Wide range of technical options available

LSR Injection Molding Machine Overview

An LSR injection molding machine is specialized equipment for producing parts from liquid silicone rubber (LSR) through liquid injection molding (LIM). These machines handle LSR's unique properties requiring specific processing conditions for proper curing.

Key Features and Process

Dedicated LSR Injection Unit

Designed to handle the low viscosity of liquid silicone rubber, unlike traditional injection molding.

Meter Mixing System

Precisely mixes two-part LSR (A and B) in specific ratios (usually 1:1) with hydraulic or pneumatic delivery to a static mixer.

Heated Mold Process

Mixed LSR is injected into heated mold cavities where heat triggers chemical curing into solid, flexible rubber components.

Advantages of LSR Injection Molding

Creates complex geometries with intricate mold designs and thin-walled sections
Operates at lower injection pressures than thermoplastics, reducing mold stress
Delivers high precision and repeatability for tight-tolerance parts
Produces parts with wide temperature range tolerance
Excellent material properties including elongation, tear strength, and electrical insulation

Common Applications

LSR injection molding serves multiple industries:

Medical: Seals, gaskets, catheters, breathing masks
Automotive: Seals and gaskets
Electronics: Keypads, connectors, insulators
Consumer Goods: Baby products, kitchen utensils

BETTER Vertical LSR Injection Molding Machine Specifications

Specification	Value
Clamping Force	120 tons
Size	1290 × 560mm
Max Mold Size	550 × 550mm
Min Mold Height	260 + 50mm
Mold Stroke	280mm
Max Daylight	540 + 50mm
Ejector Force	3 tons
Thimble Diameter	Φ25
Ejector Distance (Product)	105 (75)mm
Max Hydraulic Pressure	140kg/cm²
Cooling Water	1500-1800 liters/hr
Heater Power	4kW
Motor Power	15kW
Dimensions (L × W × H)	2.27 × 2.35 × 3.12m
Weight	6 tons
