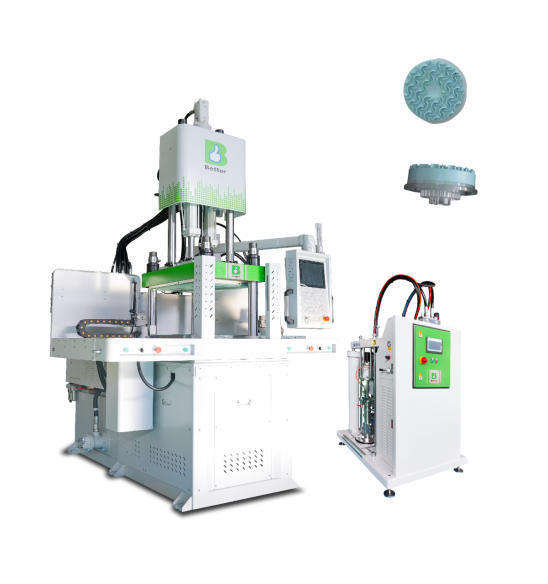

| Brand Name: | Better |
| Model Number: | Better 1200SD |
| MOQ: | 1 SET |
| Price: | USD42000-USD82000per set |
| Payment Terms: | L/C,D/A,T/T |
| Supply Ability: | 20 sets per month |
| Parameter | Value |
|---|---|
| Clamping Force | 120 tons |
| Size | 1290 * 560 mm |
| Max Mold Size | 550 * 550 mm |
| Min Mold Height | 260 + 50 mm |
| Mold Stroke | 280 mm |
| Max Daylight | 540 + 50 mm |
| Ejector Force | 3 tons |
| Thimble Diameter | Φ25 |
| Ejector Distance (Product) | 105 (75) mm |
| Max Hydraulic Pressure | 140 kg/cm² |
| Cooling Water | 1500-1800 liters/hr |
| Heater Power | 4 kW |
| Motor Power | 15 kW |
| Dimensions (L*W*H) | 2.27 * 2.35 * 3.12 m |
| Weight | 6 tons |
