Customized Vertical Silicone Injection Molding Machine with Split Configuration for Ice Cube Trays
Customized Vertical Silicone Injection Molding Machine with Split Configuration for Ice Cube Trays
Customized Vertical Silicone Injection Molding Machine with Split Configuration for Ice Cube Trays

Customized Vertical Silicone Injection Molding Machine with Split Configuration for Ice Cube Trays

Product Details

Place of Origin: Guangzhou, China

Brand Name: Better

Certification: CE、ISO

Model Number: Better 615A

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD22000-USD35000per set

Packaging Details: Wooden case

Delivery Time: 30 days

Payment Terms: T/T

Supply Ability: 25 sets per month

Get Best Price
Chat Now

Product Description

Ratings & Reviews
Highlight:
Product Description
Customized Vertical Silicone Injection Molding Machine For Ice Cube Tray With Lid

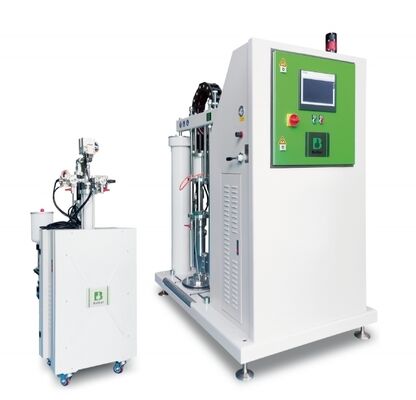

The machine is offered in a split configuration, wherein the injection unit and the clamping unit are designed as physically separate modules connected by flexible hoses and control cables. This architecture is adopted specifically to address factory layout constraints that are common in silicone processing facilities.
In many production environments, ceiling height is limited by overhead conveyors, ventilation ducts, or mezzanine floors; floor space is constrained by adjacent equipment, material storage, or workflow aisles. A conventional integrated machine requires a single continuous footprint and a fixed overhead clearance for the injection unit, which may not fit into existing layouts without costly building modifications.
Technical Specifications
Item No Better 615A
Shot Volume 0-1500g
Material Capacity 20L/200L
Mix Ratio 1:1
Power Source Hydraulic Servo Motor
Dimensions 1920 x 1030 x 1800 mm
Weight 1200 KG
Mixing System Static + Dynamic
Operation Method Plunger Pump
Applications Universal Compatibility

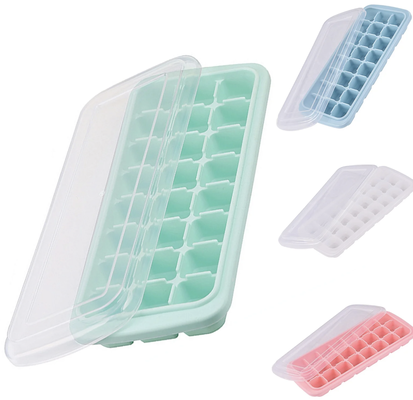

Product Context - Ice Cube Tray With Lid
Ice cube trays with lids represent a specific product category within the silicone kitchenware segment. The part typically comprises two components:
  • Tray body: a multi-cavity flexible matrix (typically 14-24 cube cavities) with a thin-wall geometry; wall thickness generally ranges from 1.5 mm to 2.5 mm at the cavity walls and 3-4 mm at the base and rim.
  • Lid: a flat or slightly domed cover, usually 2-3 mm thick, designed to seal the tray and prevent odor absorption or spillage in the freezer.
Key quality requirements for this product category include:
  • Consistent cavity wall thickness to ensure even freezing and easy release of ice cubes
  • Smooth, non-porous surface on the lid sealing rim to prevent bacterial growth and odor retention
  • Flash-free parting line on the flexible tray rim to avoid sharp edges during handling
  • Uniform color distribution if pigmented trays are specified (common for branded kitchenware)
Professional Service from BETTER
Service Phase Description
Pre-sales service Investment planning, plant layout, and complete machine/mold solutions
On-sales service Installation, debugging, and operator training
After-sales service Technical support, problem resolution, and upgrade prioritization
Advanced Features of Our Machines
  • Precision Metering & Mixing: High-precision screw or plunger type metering pump driven by servo motor ensures accurate delivery and even mixing of A and B components with static mixer
  • Exquisite Mold Design: Multiple cavities with cold runner needle valve system suitable for all types of molds
  • Versatile Injection System: Can be used in combination with double injection or operated separately for flexible production
  • Automated Operation: Easy finished product removal and part embedding to save manpower
  • Advanced Control System: Full computer control with automatic programming for precise mold, injection, curing, mold opening, and stripping operations
  • Integration Ready: Compatible with robot and conveyor belt linkage for automated production lines
High Efficiency LSR Injection Machine for ice cube tray production
LSR Injection Machine close-up view showing components and construction
