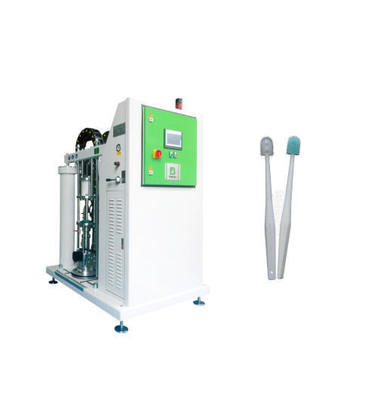

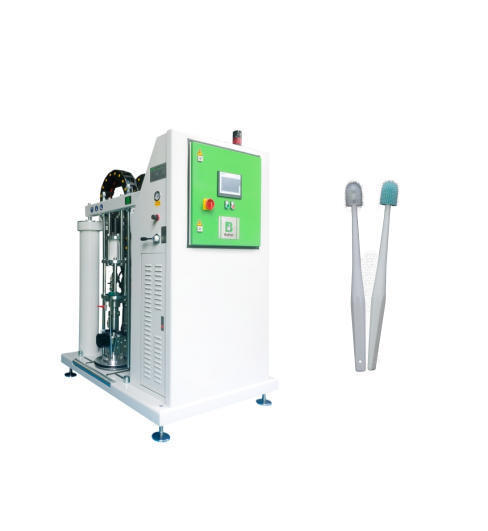

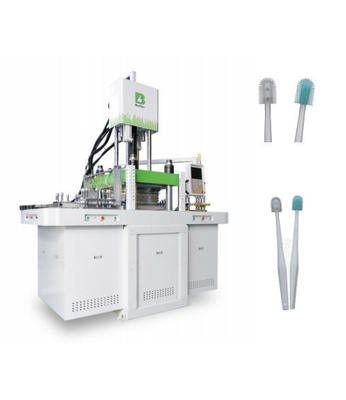

Liquid Silicone Rubber Ball Tip Toothbrush Injection Molding Machine

Brand Name:	Better
Model Number:	Better 316C
MOQ:	1 SET
Price:	USD18999-USD34999per set
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO

Key Selling Points:

Competitive Price

Warranty:

1 Year

Volume Ratio %:

1：1

Clamping Way:

Hydraulic

Operation:

Easy Operation

Packaging Details:

Wooden case

Highlight:

Liquid Silicone Rubber toothbrush injection molding machine

200L toothbrush injection molding machine

20L lsr molding machine

Product Description

Liquid Silicone Rubber Ball-Tip Toothbrush Molding Equipment

Silicone Rubber Feeding Equipment

Guangzhou S-guangyu Machinery Equipment Co., Ltd. specializes in manufacturing equipment for liquid silicone rubber products. Established in 2010, we have a core team with over 20 years of industry experience and consistently achieve annual sales growth exceeding 30%.

Company Overview

Our product range includes liquid silicone injection moulding machines, feeding systems, solid-to-liquid conversion equipment, automated part removal systems, and complete production suites. We provide comprehensive liquid silicone moulding solutions and automated production systems.

Company Scale: 70 employees including 43 production personnel, 12 sales representatives, 10 R&D & technical engineers, and 5 after-sales engineers.

Located in Huangpu District, Guangzhou, China, our facility serves as both R&D center and manufacturing base. The Better brand has earned significant market recognition through continuous innovation and maintains a technological competitive edge in the industry.

BETTER LSR Dosing System Specifications

Characteristics	A/B 1:1 (Minitrim A/B glue automatic)
Item No	316C
Shot volume	0 - 1500g
Material	20L / 200L
Ratio	1:1
Motor source	Hydraulic servo
Size	1350 x 1030 x 1850
Weight	860KG
Mix mode	Static Mixing
Work style	Plunger pump
Application	Silent, energy saving, data visualized

Technical Process

Working Principle

Our liquid silicone injection moulding machines employ cold runner technology. After precisely blending the low-temperature liquid A and B components in the correct ratio, the mixture is pressurized by a screw and injected into the high-temperature mould cavity where rapid chemical cross-linking occurs.

Working Principle Flow

Raw Material Delivery and Mixing: Liquid silicone rubber components A and B are stored separately and conveyed in fixed ratio to a static mixer for thorough blending.
Injection Moulding: Mixed silicone is propelled through a cold runner system to prevent premature curing, then injected into preheated mould cavity.
High-Temperature Vulcanisation: Components undergo rapid chemical cross-linking reaction when heated, solidifying into stable silicone products.
Pressure Holding and Cooling: Constant pressure ensures dimensional accuracy before cooling and product removal.
Automation: The entire process operates as a cyclical automated sequence for maximum efficiency.

Key Differences from Conventional Injection Moulding

Raw Material State: Uses liquid raw materials vs. conventional solid materials
Forming Method: Chemical cross-linking reaction vs. cooling solidification
Temperature Control: Cold runner technology with mould heating vs. barrel heating and cooling
