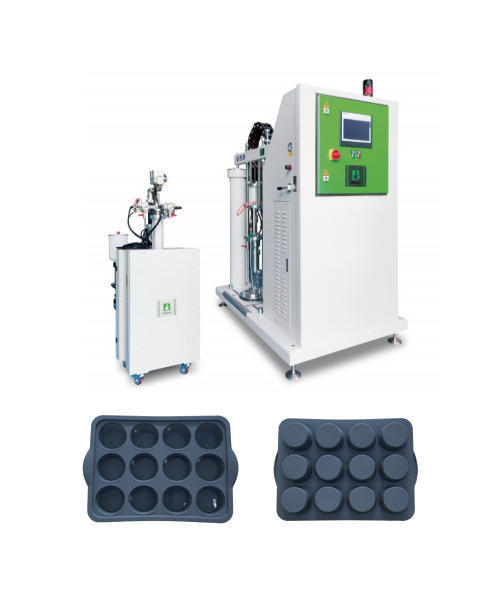

Liquid Silicone Rubber Cake Moulds And Baking Moulds LSR Injection Machine

Liquid Silicone Rubber Cake Moulds And Baking Moulds LSR Injection Machine

Brand Name: Better
Model Number: Better 615B
MOQ: 1 SET
Price: USD20000-USD35000per set
Payment Terms: T/T,L/C
Supply Ability: 30 sets per month
Detail Information
Place of Origin:
GuangZhou,China
Certification:
CE、ISO
Core Components:
Motor, Pump, PLC, Pressure Vessel
Key Selling Points:
Competitive Price
Clamping Way:
Hydraulic
Packaging Details:
Wooden case
Highlight:

Cake Moulds lsr injection machine

,

Baking Moulds lsr injection machine

,

Liquid Silicone Rubber lsr machine

Product Description
Liquid Silicone Rubber Cake Moulds And Baking Moulds Liquid Silicone Rubber Moulding Machine
BETTER LSR Dosing System
Characteristics Solid silicone to LSR
Item No Better 615
Shot volume 0 - 1500g
Material 20L / 200L
Ratio 1:1
Motor source Hydraulic servo
Size 1920 x 1030 x 1800
Weight 1200KG
Mix mode Static+Dynamic
Work style Plunger pump
Application ALL
Service

The professional service from BETTER:

  • Pre-sale service: Provide investment budget and plant planning, offer complete solutions for machines and molds based on customer product requirements.
  • On-sales service: Installation and machine debugging services included. Free training for staff to operate and maintain equipment independently.
  • After-sales service: Timely technical support, priority product upgrades for existing customers, and on-site problem resolution.
Working Principle

Liquid silicone injection moulding machines employ cold runner technology. After precisely blending the low-temperature liquid A and B components of silicone in the correct ratio, the mixture is pressurized by a screw and injected into the high-temperature mould cavity where it rapidly cures through chemical cross-linking.

Working Principle Flow
  1. Raw Material Delivery and Mixing: Two-component silicone (A+B) is conveyed in fixed ratio to static mixer for thorough blending.
  2. Injection Moulding: Mixed silicone is injected through cold runner system into preheated mould cavity.
  3. High-Temperature Vulcanisation: Chemical cross-linking reaction rapidly solidifies silicone into stable products.
  4. Pressure Holding and Cooling: Constant pressure ensures dimensional accuracy before cooling and product removal.
  5. Automation: Continuous cycle operation minimizes manual intervention for high efficiency.
Differences from Conventional Injection Moulding
  • Raw Material: Uses liquid components vs. solid materials in conventional machines
  • Forming Method: Chemical cross-linking (thermosetting) vs. cooling solidification
  • Temperature Control: Cold runner with heated mould vs. heated barrel in conventional systems

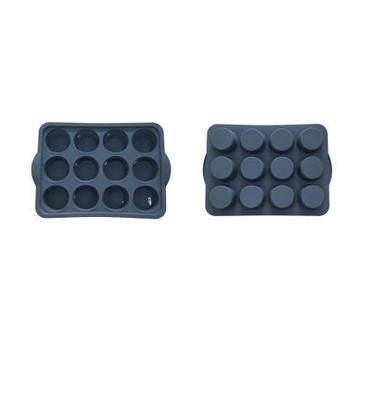

Liquid Silicone Rubber Cake Moulds And Baking Moulds LSR Injection Machine 0
