High Precision Servo Motor LSR Injection Molding Machine for Baby Training Cups

Name: High Precision Servo Motor LSR Injection Molding Machine for Baby Training Cups
Brand: Guangzhou S-guangyu Machinery &Equipment Co., Ltd
SKU: 1200R2
Price: 62000.00 USD
Availability: InStock

Product Details

Place of Origin: Guangzhou, China

Brand Name: Better

Certification: CE、ISO

Model Number: 1200R2

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD42000-USD82000per set

Packaging Details: Plastic film

Delivery Time: 50 days

Payment Terms: T/T,D/A,D/P,L/C

Supply Ability: 15 sets per month

Get Best Price

Chat Now

Product Details

Product Description

Ratings & Reviews

Product Details

Highlight:
                                                                                                                                                                                                                                                LSR injection molding machine for baby cups, high precision servo motor molding machine, LSR molding machine with servo motor


Keyword:	High Productivity	Injection Unit:	Single/Dual
Port:	Guangzhou	Motor:	Servo Motor
Color:	Gray & Green	Operation:	Easy Operation

Keyword:	High Productivity
Injection Unit:	Single/Dual
Port:	Guangzhou
Motor:	Servo Motor
Color:	Gray & Green
Operation:	Easy Operation

Product Description

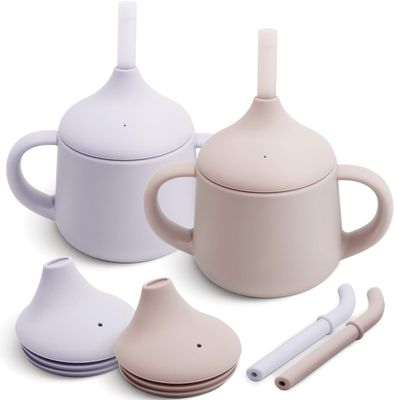

Baby Training Cup Liquid Silicone Rubber Injection Molding Machine High Precision

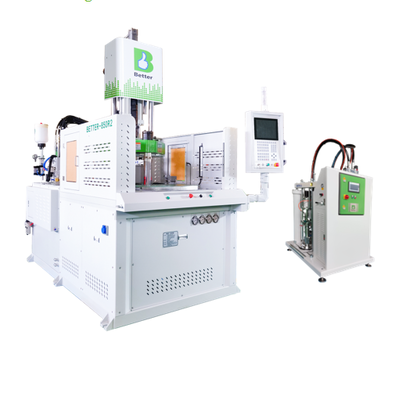

The Better 1200 R2 Vertical LSR Injection Molding Machine is meticulously engineered to address the unique challenges of manufacturing baby training cups from liquid silicone rubber. Unlike standard commodity molding, baby cups demand exceptionally high dimensional stability to ensure zero leakage and a comfortable, safe oral experience for toddlers. This machine delivers that precision consistently, shot after shot.

Technical Specifications

Item No	Better 1200 R2
Clamping force	120 tons
Max Mold Size	500500(700400) mm
Min Mold Height	260+50 mm
Ejector Force	3 tons
Diameter of Rotary	Φ1360
Ejector Distance (product)	105(75) mm
Max Hydraulic Pressure	140 kg/cm²
Cooling Water	1500-1800 liters/hr
Electrothermal	4 kw/section
Motor	15 kw
Dimensions (L WH)	304023403120/3950 cm
Weight	7.2 tons

Key Features

Mould clamping device: Finite element analysis casting ensures strength. Hinged lugs on movable and tail plates increase rigidity.
Injection device: High precision dosing machine with precise operation, intelligent control, and high stability.
Full digital CAN control mode: Accurate system pressure and flow control with easy operation and maintenance.
Manifold: YUKEN solenoid valve for reliable sealing, stable operation, and long service life.
Main die cylinder: Forged steel parts for stability.
Adjustable ejector: Flexible operation for different mold characteristics.
High-quality PLC system: Reliable distribution box.
Humanized computer operation display: Easy operation with reduced waiting time.

High-Precision LSR Dosing System

Parts processed with imported equipment for accuracy
Core parts imported from Europe/America for stability and longevity
Convenient maintenance design with easy-to-disassemble displacement pump
Long-life service sealing elements
Function guarantee and external valve
Detachable mixer
Material shortage and over pressure alarm safety device
Reproducible color adjustment
Optimized coating through special material barrel supporting disk
Material barrel emptying alarm
Special options available for unique requirements
Compliance with international and European standards
Barrel size flexibility (200-liter to 20-liter)
Hard metal ball valve and high-speed steel piston rod for different viscosity materials
Coolable mixing section
Colorant adding and metering device
Continuous feeding pump operation with material assistance
Pressure gauge display in mixed materials

The two components, once mixed in the desired ratios, are metered to the injection unit by a special delivery system. Our equipment can be integrated with existing LSR delivery systems or provided as a complete turn-key solution.

Professional Service from BETTER

Service Phase	Description
Pre-sales service	Investment planning, plant layout, and complete machine/mold solutions
On-sales service	Installation, debugging, and operator training
After-sales service	Technical support, problem resolution, and upgrade prioritization
