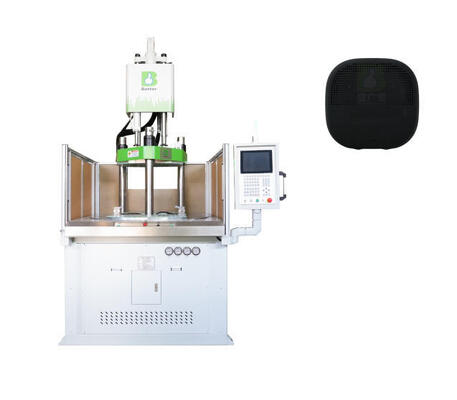

High Precision LSR Overmolding Machine for Smart Camera Silicone Mounts
| Specifications: |
|

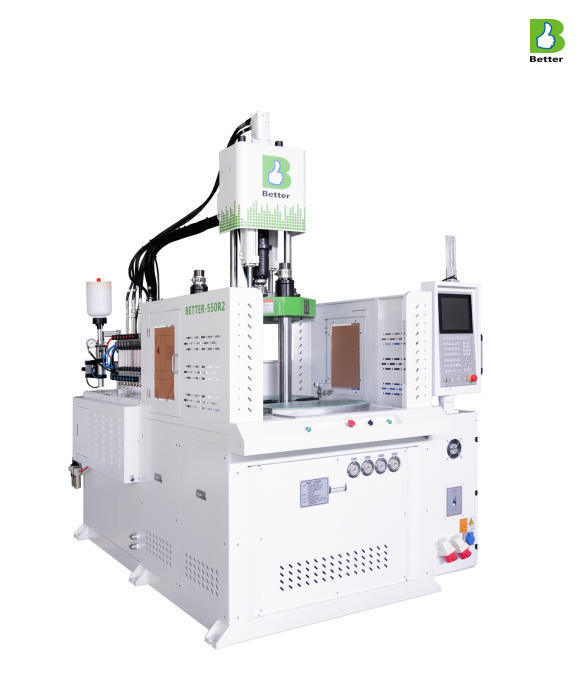

| BETTER Vertical Rotary LSR injection molding machine |
| clamping force |
85tons |
| size |
Φ1180 |
| max mold size |
430*430(600*350)mm |
| Min mold height |
210+50mm |
| mold stroke |
250mm |
| max daylight |
460+50mm |
| ejector force |
3tons |
| Thimble diameter |
Φ25 |
| ejector distance(product) |
105(75)mm |
| Max hydraulic pressure |
140kg/cm2 |
| cooling water |
1500-1800liters/hr |
| ElectrothermaL |
4kw |
| Motor |
13kw |
| Dimention (L*W*H) |
2.84*2.13*2.86/3.67 |
| weight |
5.5tons |
LSR injection molding industry application
Maternal and baby industry: The safety and forming process of liquid silicone materials are non-pollution, and have been widely used in the production of silicone products such as nipples, pacifiers, teether , bottles, spoons, suckers, brushes and so on in the maternal and baby industry.
Medical industry: The good biological characteristics and high-quality forming technology of liquid silicone materials have been widely used in the silicone accessories such as catheter & the joint, gastric tube, laryngeal mask, mask, dental bracket, negative pressure ball, incision protective cover, balloon and so on in the medical industrial.
Electronics industry: The waterproof, elastic and high precision forming process of liquid silicone material has been widely used in the silicone parts such as joint waterproof seals, horn diaphragm, mobile phone case, watch belt, button, earphone and so on in the electronics industry.
Automobile Parts Industry: The high permeability and high efficiency production process of liquid silicone material has been widely used in the silicone accessories such as LED perspective mirror,spark plug protector, wire harness seal ,sealing strips in automobile parts industry.
product advantages
1. Independent dual-cylinder injection system ensures injection stability. Capable of injecting products with different resin volumes.
2.Independent direct-pressure clamping mechanism allows for the use of molds with varying wall thicknesses.
3. High-efficiency disc mechanism featuring slip ring water circulation and mold heating.
4. Two-station disc (one upper mold, two lower molds) enabling automated production.
5. Servo-driven turntable ensures smooth and stable operation.
6. Mechanical positioning device to ensure accurate positioning and protect the mold.
7. Silicone-specific oil circuit design to ensure stable injection volume.
8. Independent system design for flexible and convenient use. Can also achieve single-mold production.
