Liquid silicone household vacuum cleaner sealing ring LSR high-precision injection molding machine

Liquid silicone household vacuum cleaner sealing ring LSR high-precision injection molding machine
Liquid silicone household vacuum cleaner sealing ring LSR high-precision injection molding machine Liquid silicone household vacuum cleaner sealing ring LSR high-precision injection molding machine

Large Image :  Liquid silicone household vacuum cleaner sealing ring LSR high-precision injection molding machine

Product Details:
Place of Origin: GuangZhou，China
Brand Name: Better
Certification: CE、ISO
Model Number: Better 4200-3V4R
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD81999-USD119999per set
Packaging Details: Plastic film
Delivery Time: 50 days
Payment Terms: T/T
Supply Ability: 5 sets per month
Contact Now Chat Now

Liquid silicone household vacuum cleaner sealing ring LSR high-precision injection molding machine

Description
Economic Benefits: Obvious--30-50% Electricity Can Be Saved Motor: Servo Motor
Warranty Time: 12 Months Style: Vertical
Highlight:

LSR injection molding machine for vacuum cleaners

,

liquid silicone vacuum cleaner sealing ring

,

high-precision LSR injection molding machine

Liquid Silicone Household Vacuum Cleaner Sealing Ring LSR High-Precision Injection Molding Machine
Technical Specifications
Specification Value

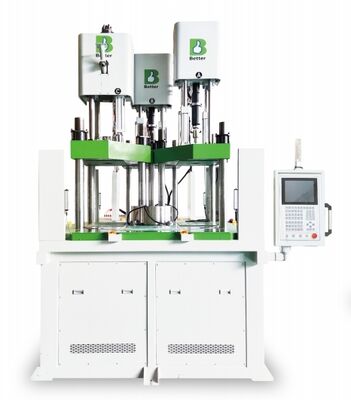

Machine Model BETTER Vertical Rotary LSR Injection Molding Machine
Clamping Force 200 tons
Size Φ1600
Max Mold Size 600*600(750*500)mm
Min Mold Height 310+50mm
Mold Stroke 350mm
Max Daylight 600+50mm
Ejector Force 4.6 tons
Thimble Diameter Φ35
Ejector Distance (Product) 140(110)mm
Max Hydraulic Pressure 140kg/cm²
Cooling Water 1500-1800 liters/hr
Electrothermal 4kw
Motor 26kw
Dimension (L*W*H) 3.32*2.63*3.52/4.47
Weight 12 tons
Advanced Features
  • Precision Metering & Mixing: High-precision screw or plunger type metering pump driven by servo motor ensures accurate delivery and even mixing of A and B components with static mixer
  • Exquisite Mold Design: Multiple cavities with cold runner needle valve system suitable for all types of molds
  • Versatile Injection System: Can be used in combination with double injection or operated separately for flexible production
  • Automated Operation: Easy finished product removal and part embedding to save manpower
  • Advanced Control System: Full computer control with automatic programming for precise mold, injection, curing, mold opening, and stripping operations
  • Integration Ready: Compatible with robot and conveyor belt linkage for automated production lines
Applications

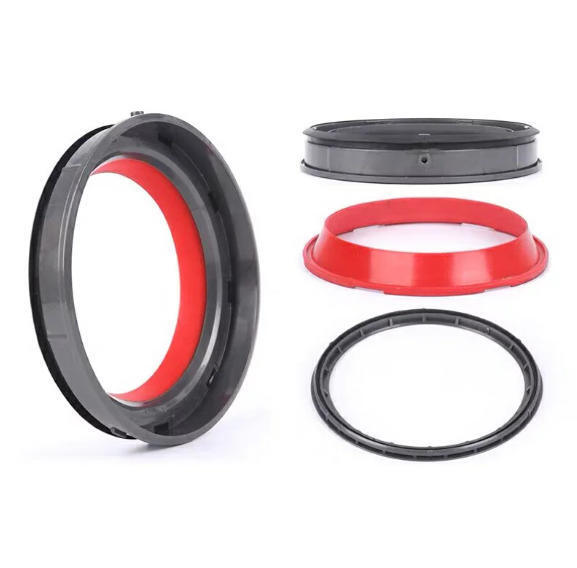

This vertical liquid silicone rubber injection machine is ideal for precision manufacturing in electronics, medical devices, baby products, and household appliances including vacuum cleaner sealing rings.
