Production Machine for Liquid Silicone Rubber Baby Anti-Drop Suction Bowl Powerful Suction Bowl

Name: Production Machine for Liquid Silicone Rubber Baby Anti-Drop Suction Bowl Powerful Suction Bowl
Brand: Guangzhou S-guangyu Machinery &Equipment Co., Ltd
SKU: Better 1200R2
Price: 62,000.00 USD
Availability: InStock

Product Details

Place of Origin: GuangZhou，China

Brand Name: Better

Certification: CE、ISO

Model Number: Better 1200R2

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD42000-USD82000per set

Packaging Details: Plastic film

Delivery Time: 50 days

Payment Terms: T/T

Supply Ability: 10 sets per month

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                Powerful Suction Bowl Production Machine, Anti-Drop Suction Bowl Production Machine


Core Components:	Motor, Pump, PLC, Pressure Vessel	Warranty:	1 Year
Volume Ratio %:	1：1	Economic Benefits:	Obvious--30-50% Electricity Can Be Saved

Core Components:	Motor, Pump, PLC, Pressure Vessel
Warranty:	1 Year
Volume Ratio %:	1：1
Economic Benefits:	Obvious--30-50% Electricity Can Be Saved

Product Description

Production Machine for Liquid Silicone Rubber Baby Anti-Drop Suction Bowl Powerful Suction Bowl

Production Equipment Specifications

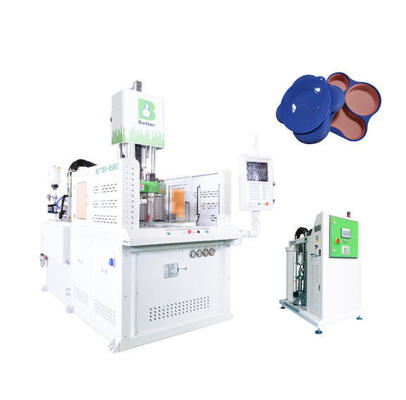

Machine Type	BETTER Vertical Rotary LSR injection molding machine
Clamping Force	120 tons
Size	Φ1360
Max Mold Size	500500(700400)mm
Min Mold Height	260+50mm
Mold Stroke	280mm
Max Daylight	540+50mm
Ejector Force	3 tons
Thimble Diameter	Φ25
Ejector Distance (Product)	105(75)mm
Max Hydraulic Pressure	140kg/cm²
Cooling Water	1500-1800 liters/hr
Electrothermal	4kw
Motor	15kw
Dimension (LWH)	3.042.343.12/3.95
Weight	7.2 tons

What is an LSR Injection Molding Machine?

An LSR injection molding machine is a specialized piece of equipment used to produce parts from liquid silicone rubber (LSR) through a process called liquid injection molding (LIM). These machines are designed to handle the unique properties of LSR, which is a thermoset material that requires specific processing conditions to achieve proper curing.

Key Features and Process

Dedicated LSR Injection Unit: Unlike traditional injection molding, LSR machines feature a specialized injection unit designed to handle the low viscosity of liquid silicone rubber.
Meter Mixing System: LSR typically comes in two parts (A and B) that need to be precisely mixed in a specific ratio (usually 1:1). These machines have a meter mixing system (often hydraulic or pneumatic) to ensure accurate and consistent material delivery to a static mixer.
Static Mixer: The two-part LSR mixture is fed into a static mixer, which combines the components to initiate the curing process.
Heated Mold: The mixed LSR is injected into a heated mold cavity, where the heat triggers a chemical reaction that cures the material into a solid, flexible rubber component.
Precise Temperature Control: Maintaining the correct temperature in the mold is crucial for proper curing, and LSR machines offer precise temperature control.
Fast Cycle Times: Because LSR cures from the outside in, it can often be demolded before the entire part is fully cured, leading to faster cycle times compared to some thermoplastic molding processes, especially for thicker parts.

Advantages of LSR Injection Molding

Complex Geometries: The low viscosity of LSR allows it to fill intricate mold designs and thin-walled sections.
Lower Injection Pressures: Compared to thermoplastics, LSR can be injected at lower pressures, reducing stress on the mold and machine.
High Precision and Repeatability: LSR machines are designed for high precision and repeatability, making them suitable for producing parts with tight tolerances.
Wide Temperature Range: LSR parts can withstand a wide range of temperatures, making them suitable for various applications.
Excellent Material Properties: LSR offers good elongation, high tear and tensile strength, excellent flexibility, and good electrical insulating properties.

Common Applications

LSR injection molding is used in a wide range of industries, including:

Medical: Devices like seals, gaskets, catheters, and breathing masks
Automotive: Seals, gaskets, and other components
Electronics: Keypads, connectors, and insulators
Consumer Goods: Baby bottle nipples, kitchen utensils, and various household products

In summary: LSR injection molding machines are specialized systems that leverage the unique properties of liquid silicone rubber to produce high-precision, durable parts for a wide range of applications.
