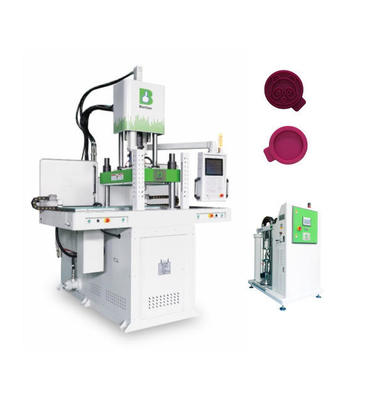

Liquid Silicone Rubber Coffee Cup Lid Plastic Injection Molding Machine

Brand Name:	Better
Model Number:	Better 1600SD
MOQ:	1 SET
Price:	USD42000-USD82000per set
Payment Terms:	T/T,Western Union,MoneyGram,D/P,D/A,L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE、ISO

Core Components:

Motor, PLC, Engine, Screw

Advantages:

High Efficiency

Warranty Time:

12 Months

Style:

Vertical

Packaging Details:

Plastic film

Highlight:

Cup Lid Plastic Injection Molding Machine

Liquid Silicone Rubber Plastic Injection Molding Machine

lsr automatic plastic injection moulding machine

Product Description

Liquid Silicone Rubber Coffee Cup Lid Molding Machine

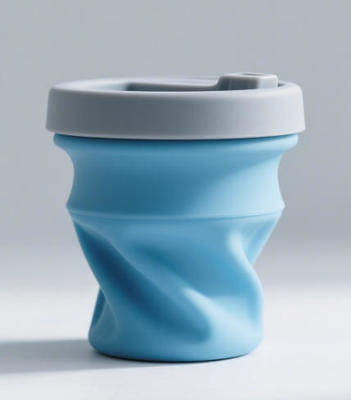

Reusable Cup Lid Production Equipment

This advanced LSR injection molding machine is designed for high-efficiency production of reusable silicone coffee cup lids, offering precision, reliability, and automation for industrial manufacturing.

Industry Applications

Maternal and Baby Industry

The safety and clean forming process of liquid silicone materials make them ideal for producing various silicone products including nipples, pacifiers, teethers, bottles, spoons, and brushes.

Medical Industry

Widely used for medical silicone accessories such as catheters, gastric tubes, laryngeal masks, dental brackets, and incision protective covers due to excellent biological characteristics.

Electronics Industry

Perfect for waterproof seals, mobile phone cases, watch bands, buttons, and earphones thanks to its waterproof, elastic properties and high precision forming.

Automotive Parts Industry

Used in LED perspective mirrors, spark plug protectors, wire harness seals, and sealing strips due to high permeability and efficient production process.

Technical Specifications

Clamping Force	160 tons
Size	1500 × 730 mm
Max Mold Size	720 × 660 mm
Min Mold Height	300 + 50 mm
Mold Stroke	300 mm
Max Daylight	600 + 50 mm
Ejector Force	4 tons
Thimble Diameter	Φ25
Ejector Distance (Product)	130 (100) mm
Max Hydraulic Pressure	140 kg/cm²
Cooling Water	1500-1800 liters/hr
Heater Power	4 kW
Motor Power	22 kW
Dimensions (L × W × H)	2.86 × 2.76 × 3.30 m
Weight	9.6 tons

Technology Overview

Our liquid silicone injection molding machines utilize cold runner technology to precisely blend low-temperature liquid silicone components (A and B) in the correct ratio. The mixture is pressurized by a screw and injected into high-temperature mold cavities where rapid chemical cross-linking occurs, achieving high-precision, high-efficiency automated production.

Working Principle

1. Raw Material Delivery and Mixing

Liquid silicone rubber components (A with catalyst and B with cross-linking agent) are stored separately and conveyed in fixed ratio to a static mixer for thorough blending, with optional colorant additives.

2. Injection Molding

Mixed silicone is propelled through a non-return valve into the cold runner system (maintained at low temperature) and rapidly injected into preheated mold cavities.

3. High-Temperature Vulcanization

In the heated mold, components undergo rapid chemical cross-linking (thermal curing) to form stable, elastic silicone products.

4. Pressure Holding and Cooling

Constant pressure maintains dimensional accuracy during curing, followed by cooling and product removal.

5. Automated Repeat Production

The entire process operates as a cyclical automated sequence for maximum efficiency with minimal manual intervention.

Key Differentiators

Uses liquid raw materials (vs. conventional solid materials)
Thermosetting molding through chemical cross-linking (vs. cooling solidification)
Cold runner technology with mold heating (vs. barrel heating in conventional machines)
Higher precision and efficiency for silicone products
