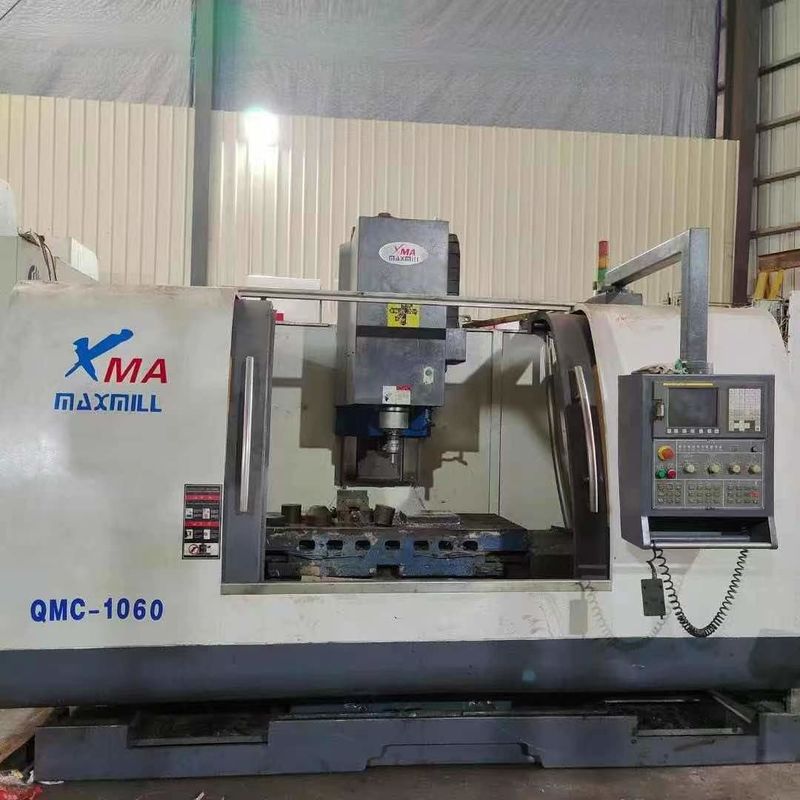

aiwan HIWIN high precison guidewaySecond Hand Taiwan Brand Maxmill 3 Axis Vh Vmc Cnc 850 1060 Cnc Milling Machine Center

• Product number       Maxmill 1060
• Stroke ( X Axle) (mm) 1060
• Stroke ( Y Axle)(mm) 600
• Stroke ( Z Axle)(mm) 600
• Distance between working table and Main spindle(mm) 680
• Distance beween spindle and Verical Guideway(mm) 125~725
• Working table size(mm) 1160*600
• Max. load on table(kg) 1000
• Spindle Taper hole on main axle(model/size) BT40
• Spindle speed(r/min) 8000
• Spindle motor power (kw) 11
• Max. travel speed on axle X(mm/min) 24000
• Max. travel speed on axle Y(mm/min) 24000
• Max. travel speed on axle Z(mm/min) 20000
• Max.cutting feed rate(mm/min) 15000
• Tool capacity 24

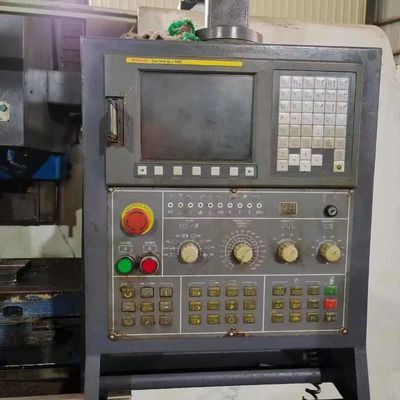

• CNC system FANUC Oi -MD
• Positioning Accuracy (mm) ± 0.003 mm
• Weight(kg) 6800

PRODUCT DETAILS

1.24T arm-type ATC

2.Ball screw and linear guideway(THK)

3.Heat ecchanger

4.Spindle oil chiller

5.Spindle air bolw

6.Screw-type chip conveyor

7.Rigid tapping

8.Workpiece Coolant system

9.Air gun

10.Automatic lubrication system

CNC Milling machine center Product Application
All 3axis use class C3 precision screw,match up the nut preloading and screw prestretched,preeliminate backlash and temperature rise,so that the machine can achieve stability of the positioning and repeatability accuracy.Besides,the X/Y/Z axis use precision linear rails to ensure the control of the positioning accuracy and processing errors,so that the machine can have high accuracy and long working life.

Product Features:

1. Aseismatic capability, high strength and good quality cast iron.

2. Wide base and Y-type column structure.

3. Taiwan high precision linear guide ways.

4. Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.

5. Adopting Japan NSK special screws angular contact ball bearing group

Use container to hold machine, always need 40ft HQ

Dongguan Jingzhan Machine Equipment Co., Ltd. is located in Dongguan City, Guangdong Province, China.


Jingzhan machine company has developed into a comprehensive company with multi-national operations.

The Company now has mainly covered several industries, namely plastic injection molding machine, CNC working center, milling machine, lathe machine, sewing machine and machine parts etc
In 2020, the Company has generated total sales revenue exceeding 5 Million US dollars, with products sold to customers over 30 countries and regions.Our
differentiated machine concepts not only meet the specific requirements of every important customer, but also generate further competitive advantages for our customers.

We provide full-service to our customers after our products are sold and ensure our customers receive prompt feedback and solutions.

We swear that every machine you''ll receive from us is in good condition.Looking forward to our long-term cooperation.
