Product Details
Place of Origin: GuangZhou，China
Brand Name: Better
Certification: CE、ISO
Model Number: Better 2400-2V3R
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Standard packaging
Delivery Time: 65 days
Payment Terms: T/T,L/C
Supply Ability: 10 sets per month
Style: |
Vertical |
Key Selling Points: |
Energy Saving |
Economic Benefits: |
Obvious--30-50% Electricity Can Be Saved |
Motor: |
Servo Motor |
Style: |
Vertical |
Key Selling Points: |
Energy Saving |
Economic Benefits: |
Obvious--30-50% Electricity Can Be Saved |
Motor: |
Servo Motor |

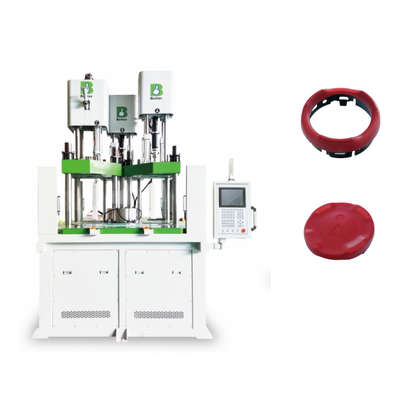

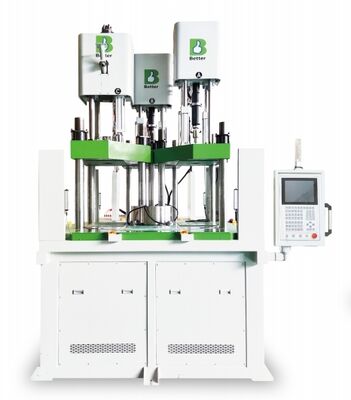

| 2400-2V3R VERTICAL DOUBLE COLOR AND DOUBLE MATERIAL LSR INJECTION MACHINE (S-GUANGYU) |
||||
| TECHNICAL DATA | ||||
| Injection system | screw diameter | mm | 45 | |
| Injection pressure | kg/cm2 | 1179 | ||
| Theoretical shot volume | cm3 | 255 | ||
| screw stroke | mm | 160 | ||
| screw rotation speed | rpm | 0-200 | ||
| Nozzle contact force | tons | 3 | ||
| Nozzle stroke | mm | 50 | ||
| Temperature control | section | 5 | ||
| Clamping unit | Clamping force | tons | A120+B120 | |
| Ejector stroke | tons | 3.5 | ||
| Diameter of rotary | mm | 1600 | ||
| Max mold size | mm | 450*450 | ||
| Mini mold height | mm | 450+50(customized) | ||
| Opening stroke | mm | 280 280 | ||
| Max mold gap | mm | 730+50 730+50 | ||
| Ejector space (from product) |
mm | 150 | ||
| Oil Pressurepower System | Max hydraulic pressure pump output | kg/cm2 | 140 | |
| Water volume | liters/hr | 1500~1800 | ||
| Electric power | KW/ section | 6 | ||
| Others | Dimentions (length*width*height) |
m | 3.8*3*3.42/4.23 | |
| Total Weight | tons | 17.6 | ||
S-guangyu will provide you with an integrated solution of machinery, mold and support services for manufacturing medical parts:
1. Independent double-cylinder injection system to ensure the injection stability. Different glue can be injected.
2. Independent direct pressure clamping unit,different mold thickness can be chose.
3. Mechanical positioning device to ensure its accurate positioning and protect the mold.
4. Independent system design, it is flexible and convenient to use. Single-mode production is also possible.
5. Wide range of technical options.
The professional service from better
Pre -sale service:
Provide investment budget and plant planning,Provide a whole set of solutions about machine and mold according to products that customers offered.
On-sales service:
Provide installation and new machine debugging services for users who purchase better machine* Free tranning for your staff who can operate and maintain the machine independently in your factory.
After-sales service:
Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;
After product upgrading, the upgrading work of previous users shall be given priority as required;
