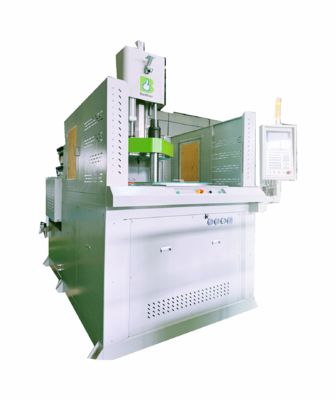

Liquid Silicone Earphone Charging Cradle Vent Valve Overmolding Machine

Name: Liquid Silicone Earphone Charging Cradle Vent Valve Overmolding Machine
Brand: Guangzhou S-guangyu Machinery &Equipment Co., Ltd
SKU: Better 850R
Price: 62,000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Better

Certification: CE、ISO

Model Number: Better 850R

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD42000-USD82000per set

Packaging Details: Plastic film

Delivery Time: 50 days

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 10 sets per month

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                220V overmolding machine, 85 tons overmolding machine, 85 tons over molding machine


Voltage:	220V	Control System:	PLC
Power Source:	Electric	Heating Power:	13 KW
Core Components:	Motor, Pump, PLC, Pressure Vessel	Warranty:	1 Year

Voltage:	220V
Control System:	PLC
Power Source:	Electric
Heating Power:	13 KW
Core Components:	Motor, Pump, PLC, Pressure Vessel
Warranty:	1 Year

Product Description

Liquid Silicone Earphone Charging Cradle Vent Valve Overmolding Machine

Product Advantages

Independent dual-cylinder injection system ensures injection stability and capability for products with different resin volumes
Independent direct-pressure clamping mechanism accommodates molds with varying wall thicknesses
High-efficiency disc mechanism with slip ring water circulation and mold heating
Two-station disc (one upper mold, two lower molds) enables automated production
Servo-driven turntable ensures smooth and stable operation
Mechanical positioning device guarantees accurate positioning and mold protection
Silicone-specific oil circuit design maintains stable injection volume
Flexible independent system design capable of single-mold production

Technical Specifications

Model	BETTER Vertical Rotary LSR injection molding machine
Clamping Force	85 tons
Size	Φ1180
Max Mold Size	430430 (600350) mm
Min Mold Height	210+50 mm
Mold Stroke	250 mm
Max Daylight	460+50 mm
Ejector Force	3 tons
Thimble Diameter	Φ25
Ejector Distance (Product)	105 (75) mm
Max Hydraulic Pressure	140 kg/cm²
Cooling Water	1500-1800 liters/hr
Electrothermal	4 kW
Motor	13 kW
Dimensions (LWH)	2.842.132.86/3.67 m
Weight	5.5 tons

When is Liquid Silicone Rubber the Best Choice?

Liquid silicone rubber (LSR) elastomers offer numerous advantages with a wide variety of available grades including general purpose, food-grade, medical, self-adhesive, low-volatile, optically clear, and specialty grades in a range of durometers from very firm to very soft.

LSR materials are inherently insulating with superior heat and flame resistance, making them ideal for electrical, automotive, and industrial applications. Their natural biocompatibility and hypo-allergenic properties make them excellent for skin-contact products.

Key physical properties include high compression set, maintaining original shape after numerous compressions even in extreme temperatures. While naturally translucent white, LSR can be pigmented in various colors.

Common LSR Applications Across Industries

Seals, gaskets and thin membranes
Insulators and cushions
Valves and bladders
Respiratory masks
Syringes and IV components
Wearable health monitoring devices
Electronic components
Food and beverage products
