Products

Home > Products > Injection Molding Machine Accessories > 85 Tons Clamping Force LSR Injection Molding Machine for Silicone Jar Seal Ring Gasket

85 Tons Clamping Force LSR Injection Molding Machine for Silicone Jar Seal Ring Gasket

Name: 85 Tons Clamping Force LSR Injection Molding Machine for Silicone Jar Seal Ring Gasket
Brand: Guangzhou S-guangyu Machinery &Equipment Co., Ltd
SKU: Better 850S
Price: 60500.00 USD
Availability: InStock

Product Details

Place of Origin: Guangzhou, China

Brand Name: Better

Certification: CE、ISO

Model Number: Better 850S

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD39000-USD82000per set

Packaging Details: Plastic film

Delivery Time: 50 days

Payment Terms: T/T,L/C,D/A,D/P

Supply Ability: 20 sets per month

Get Best Price

Chat Now

Product Description

Highlight:

Product Description

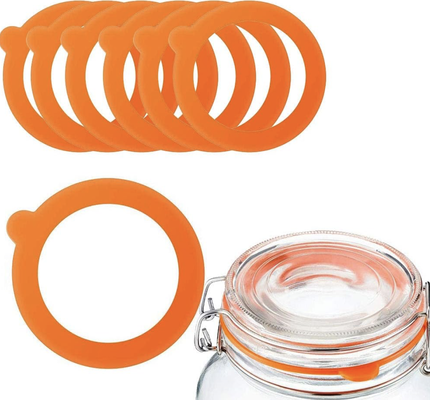

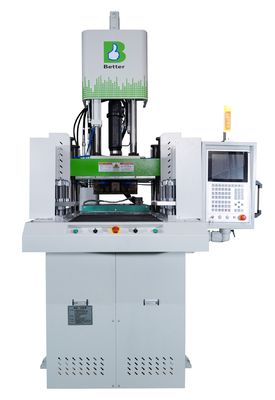

LSR Vertical Molding Machine for Silicone Jar Seal Ring Gasket

Product Overview

Liquid Vertical Injection Molding Machine With Double Sliding Board

BETTER LSR Injection Molding Machine manufactured with CE and ISO Production Controller
Widely used in medical silicone products, electronic silicone seals, and related applications
Direct pressure mould opening and closing system with horizontal injection structure
Enables faster mold adjustment and more precise position control
Ideal for producing LSR parts that can be automatically removed from the mould

Technical Specifications

Item No	Better 850S
Clamping force	85 tons
Max mold size	580*500mm
Mini mold height	210+50mm
Ejector space (from product)	105(75)mm
Max hydraulic pressure pump output	140kg/cm²
Water volume	1500~1800 liters/hr
Motor power	13KW
Dimensions (lengthwidthheight)	248018202860/3660 cm
Total Weight	4.2 tons

Understanding Silicone Rubber

Silicone rubber is a high-performance synthetic elastomer composed of silicone and other molecules (carbon, hydrogen, and oxygen). It is characterized by high viscosity and elasticity, as well as superior abrasion resistance, chemical stability, insulating properties, temperature resistance, and weatherability compared to organic rubber.

Key Properties

Operating temperature range: -100°C to 350°C (depending on exposure duration)
Weatherability: Resistant to wind, rain, UV radiation, and ozone
Moisture resistance: 1% water absorption in various water temperatures
Steam resistance: Indefinite resistance to unpressurized steam
Chemical resistance: Resistant to oils, solvents, polar organic compounds, and diluted acids/alkalis
Electrical insulation: 1TΩ*m-100TΩ*m across wide temperature and frequency ranges

Types of Silicone Rubber

Silicone rubber varies by viscosity and processing method:

Solid Silicone Rubber (HTV): Long polymer chains processed by conventional methods
Liquid Silicone Rubber (LSR): Short polymer chains requiring specialized injection molding
Room Temperature Vulcanized (RTV) Rubber: Used for sealing, encapsulation, and potting applications

Applications

Silicone rubber is used across multiple industries including:

Aerospace (space suit components)
Automotive (gaskets and seals)
Medical (instrument components)
Food processing (molds)
Electronics (adhesives and encapsulants)

LSR vs. Solid Silicone Rubber

Liquid Silicone Rubber (LSR): High fluidity, transparent, food/skin safe, requires specialized equipment

Solid Silicone: Lower cost, processes with conventional equipment
