High Speed Liquid Silicone Pacifier Demoulding And Molding Machine Food Grade Silicone Equipment

Name: High Speed Liquid Silicone Pacifier Demoulding And Molding Machine Food Grade Silicone Equipment
Brand: Guangzhou S-guangyu Machinery &Equipment Co., Ltd
SKU: Better 216C
Price: 26,499.00 USD
Availability: InStock

Product Details

Place of Origin: GuangZhou，China

Brand Name: Better

Certification: CE、ISO

Model Number: Better 216C

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD17999-USD34999per set

Packaging Details: Plastic film

Delivery Time: 30 days

Payment Terms: T/T,D/P,D/A

Supply Ability: 20 sets per month

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                high speed silicone pacifier molding machine, food grade silicone demoulding equipment, liquid silicone injection molding machine


Country Of Origin:	China	Motor:	Servo Motor
Injection Unit:	Vertical	Use Material:	Liquid Silicone Rubber
Heating Zone:	3-4	Ejector Number:	1
Function:	Making LSR Product

Country Of Origin:	China
Motor:	Servo Motor
Injection Unit:	Vertical
Use Material:	Liquid Silicone Rubber
Heating Zone:	3-4
Ejector Number:	1
Function:	Making LSR Product

Product Description

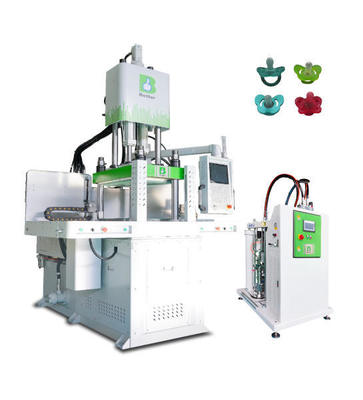

High-Speed Liquid Silicone Pacifier Demoulding and Molding Machine Food-Grade Silicone Equipment

LSR Dosing Unit Features

Over 20 years of experience in LSR technology
Imported CNC machining for precise component processing
Multiple motor options: hydraulic, hydraulic servo, or servo
High injection precision: ≤0.01g
Adjustable ratio (1:1 standard, servo motor adjustable)
Feeding volume: 0-4000g/60s (varies by viscosity)
Consistent color mixing: 0.3-4%
Pneumatic system: R3/8", 6 bar
Mix mold options: static, dynamic, or static+dynamic
Working principle: plunger or gear pump

Applications

Suitable for infants and children products, automotive parts, medical devices, electronics, sports equipment, daily use items, electric power components, and more.

High-Precision LSR Dosing System

All components processed with imported equipment for maximum accuracy
Core parts imported from Europe/America for stability and longevity
Easy-maintenance design with detachable displacement pump
Long-life sealing elements
Material shortage and over-pressure alarm safety systems
Reproducible color adjustment capability
Optimized coating through special material barrel design
Material barrel emptying alarm
Custom options available for special requirements
Compliance with international and European standards
Flexible barrel sizes (200L or 20L options)
Durable hard metal ball valve and high-speed steel piston rod
Coolable mixing section
Colorant addition and metering device
Continuous feeding pump operation
Pressure gauge display for mixed materials

The system precisely meters two components in desired ratios to the injection unit via a specialized delivery system. Can be integrated with existing LSR equipment or provided as part of a complete turn-key solution.

Technical Specifications

Parameter	Value
System Type	BETTER LSR Dosing System
Characteristics	A/B ratio 1:1
Item No	Better 216
Shot Volume	0 - 1500g
Material Capacity	20L / 200L
Ratio	1:1
Motor Source	Hydraulic
Dimensions	1375 x 1030 x 2280 mm
Weight	850KG
Mix Mode	Static Mixing
Work Style	Plunger Pump
Application	Universal
