Food-Grade Silicone Oil Brush Making Machine with LSR Injection Technology

Food-Grade Silicone Oil Brush Making Machine with LSR Injection Technology
Food-Grade Silicone Oil Brush Making Machine with LSR Injection Technology Food-Grade Silicone Oil Brush Making Machine with LSR Injection Technology Food-Grade Silicone Oil Brush Making Machine with LSR Injection Technology

Large Image :  Food-Grade Silicone Oil Brush Making Machine with LSR Injection Technology

Product Details:
Place of Origin: China
Brand Name: Better
Certification: CE、ISO
Model Number: Better 2400-2V3R
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plastic film
Delivery Time: 55 days
Payment Terms: T/T,L/C
Supply Ability: 5 sets per month
Contact Now Chat Now

Food-Grade Silicone Oil Brush Making Machine with LSR Injection Technology

Description
Key Selling Points: Competitive Price Use Material: Liquid Silicone Rubber
Style: Vertical Economic Benefits: Obvious--30-50% Electricity Can Be Saved

Food-Grade Silicone Oil Brush Making Machine with LSR Injection Technology
Technical Specifications
Specification Details

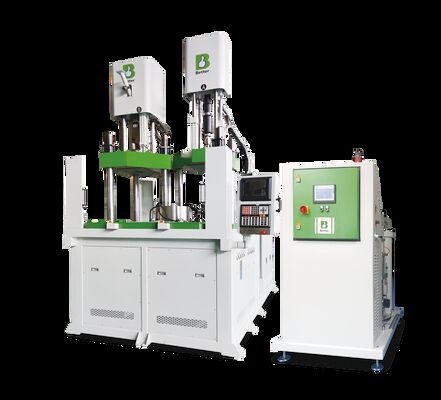

Machine Model BETTER BETTER-2400-2V3R Vertical Rotary LSR injection molding machine
Clamping Force A120T + B120T
Size 1600mm
Max Mold Size 450 × 450mm
Min Mold Height 450 + 50mm
Mold Stroke 280mm × 280mm
Max Daylight 730 + 50mm
Ejector Force 3.5 tons
Ejector Distance (Product) 150mm
Max Hydraulic Pressure 140 kg/cm²
Cooling Water 1500-1800 liters/hr
Electrothermal 6 kW
Motor 21 + 21 + 2.2 kW
Dimension (L × W × H) 3.8 × 3 × 3.42/4.23
Weight 17.6 tons
Product Advantages
  • Independent dual-cylinder injection system ensures injection stability. Capable of injecting products with different resin volumes.
  • Independent direct-pressure clamping mechanism allows for the use of molds with varying wall thicknesses.
  • High-efficiency disc mechanism featuring slip ring water circulation and mold heating.
  • Two-station disc (one upper mold, two lower molds) enabling automated production.
  • Servo-driven turntable ensures smooth and stable operation.
  • Mechanical positioning device to ensure accurate positioning and protect the mold.
  • Silicone-specific oil circuit design to ensure stable injection volume.
  • Independent system design for flexible and convenient use. Can also achieve single-mold production.
