LSR Anti-Fog Gasket Molding Machine For Swimming Goggles Ultra-Thin Anti-Fog Gasket

LSR Anti-Fog Gasket Molding Machine For Swimming Goggles Ultra-Thin Anti-Fog Gasket
LSR Anti-Fog Gasket Molding Machine For Swimming Goggles Ultra-Thin Anti-Fog Gasket LSR Anti-Fog Gasket Molding Machine For Swimming Goggles Ultra-Thin Anti-Fog Gasket

Large Image :  LSR Anti-Fog Gasket Molding Machine For Swimming Goggles Ultra-Thin Anti-Fog Gasket

Product Details:
Place of Origin: China
Brand Name: Better
Certification: CE、ISO
Model Number: Better 1200R2
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD42000-USD82000per set
Packaging Details: Plastic film
Delivery Time: 50 days
Payment Terms: T/T
Supply Ability: 10 sets per month
Contact Now Chat Now

LSR Anti-Fog Gasket Molding Machine For Swimming Goggles Ultra-Thin Anti-Fog Gasket

Description
Key Selling Points: Energy Saving Components: Techmation, Schneider，AirTac
Economic Benefits: Obvious--30-50% Electricity Can Be Saved Motor: Servo Motor
Highlight:

LSR anti-fog gasket molding machine

,

swimming goggles gasket overmolding machine

,

ultra-thin anti-fog gasket machine

LSR Anti-Fog Gasket Molding Machine For Swimming Goggles Ultra-Thin Anti-Fog Gasket

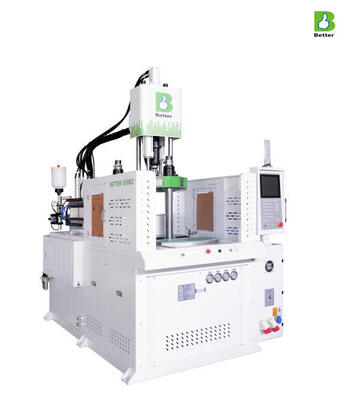

High-precision vertical rotary LSR injection molding machine specifically designed for manufacturing ultra-thin anti-fog gaskets for swimming goggles.
Technical Specifications
Specification Value
Clamping Force 120 tons
Size Φ1360
Max Mold Size 500*500(700*400)mm
Min Mold Height 260+50mm
Mold Stroke 280mm
Max Daylight 540+50mm
Ejector Force 3 tons
Thimble Diameter Φ25
Ejector Distance (Product) 105(75)mm
Max Hydraulic Pressure 140kg/cm²
Cooling Water 1500-1800 liters/hr
Electrothermal 4kw
Motor 15kw
Dimension (L*W*H) 3.04*2.34*3.12/3.95
Weight 7.2 tons
Injection Unit Features
  • Square hydraulic motor with position accuracy ≤0.1mm
  • Non-return valve between motor and tube
  • Bidirectional axial positioning to prevent screw wiggle (swing accuracy ≤0.05mm)
  • LSR-specific barrel with spline design and pneumatic sealant shut-off nozzle
  • One-piece casting injection cylinder with 5-10mm larger diameter than standard
  • Specially designed LSR oil circuit with storage position accuracy ≤0.05mm
  • Aluminum-jacketed oil seal for easy installation and precise location
  • Oil pump with bidirectional buffering for smooth operation
  • Dorsal bracket ring for O-ring protection
  • Internal pneumatic sealing needle nozzle with electronic measuring ruler (Gefran-Italy)
  • Optional Rexroth full closed loop servo valve for real-time monitoring and automatic feedback correction
Machine Configuration Options
Available in vertical sliding, vertical rotary, and horizontal configurations to suit various production requirements.
LSR Anti-Fog Gasket Molding Machine For Swimming Goggles Ultra-Thin Anti-Fog Gasket 0 LSR Anti-Fog Gasket Molding Machine For Swimming Goggles Ultra-Thin Anti-Fog Gasket 1
