| Brand Name: | Better |
| Model Number: | Better-1200SD |
| MOQ: | 1 SET |
| Price: | USD42000-USD82000per set |
| Payment Terms: | D/P,T/T,D/A,L/C |
| Supply Ability: | 20 sets per month |
| Attribute | Value |
|---|---|
| Country Of Origin | China |
| Plastic Type | Liquid Silicone |
| Gross Weight | 6ton-11ton |
| Vertical | Vertical LSR injection molding machine |
| Type | Vertical |
| Voltage | 220V |
| Control System | PLC |
S-guangyu provides integrated solutions including machinery, molds, and support services for manufacturing medical parts:

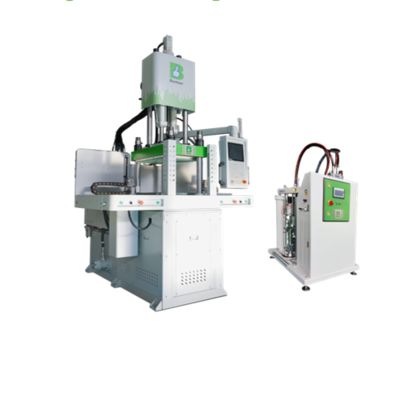

Vertical Double Slides Table LSR Injection Molding Machine with CE and ISO certification is ideal for medical silicone products and electronic silicone seals. Features include:
| Specification | Value |
|---|---|
| Clamping Force | 160tons |
| Size | 1500*730mm |
| Max Mold Size | 720*660mm |
| Min Mold Height | 300+50mm |
| Mold Stroke | 300mm |
| Max Daylight | 600+50mm |
| Ejector Force | 4tons |
| Thimble Diameter | Φ25 |
| Ejector Distance (Product) | 130(100)mm |
| Max Hydraulic Pressure | 140kg/cm² |
| Cooling Water | 1500-1800liters/hr |
| Heater Power | 4kw |
| Motor Power | 22kw |
| Dimension (L*W*H) | 2.86*2.76*3.30m |
| Weight | 9.6tons |
