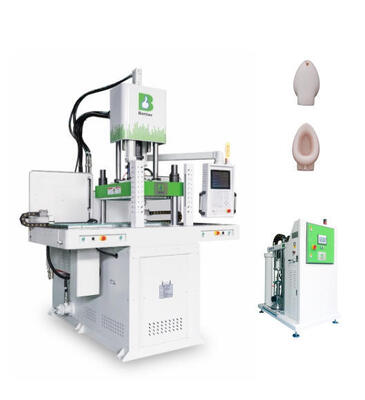

Liquid Silicone Rubber Molding Machine for Medical Seals | Automated LSR Dosing System

Name: Liquid Silicone Rubber Molding Machine for Medical Seals | Automated LSR Dosing System
Brand: Guangzhou S-guangyu Machinery &Equipment Co., Ltd
SKU: Better 316C
Price: 28,500.00 USD
Availability: InStock

Product Details

Place of Origin: GuangZhou，China

Brand Name: Better

Certification: CE、ISO

Model Number: Better 316C

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD22000-USD35000per set

Packaging Details: Wooden case

Delivery Time: 30 days

Payment Terms: T/T,L/C

Supply Ability: 20 sets per month

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                automated LSR dosing system for medical seals, liquid silicone rubber molding machine, LSR injection molding for medical seals


Volume Ratio %:	1：1	Clamping Way:	Hydraulic
Warranty Time:	12 Months	Material:	Steel, Aluminum

Volume Ratio %:	1：1
Clamping Way:	Hydraulic
Warranty Time:	12 Months
Material:	Steel, Aluminum

Product Description

Liquid Silicone Rubber Molding Machine for Medical Seals | Automated LSR Dosing System

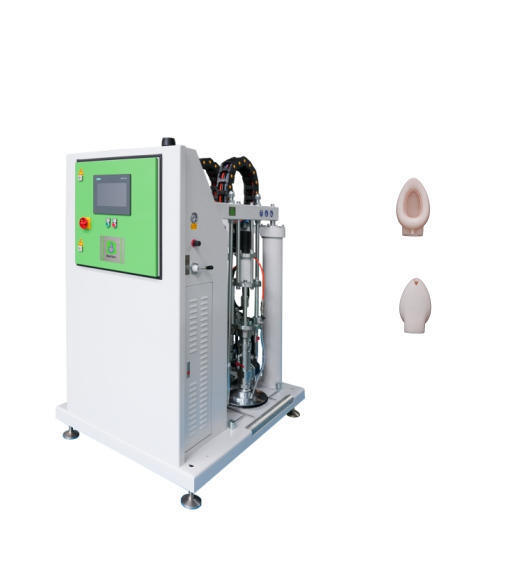

BETTER LSR Dosing System

Characteristics	A/B 1:1 (Minitrim A/B glue automatic)
Item No	316C
Shot Volume	0 - 1500g
Material	20L / 200L
Ratio	1:1
Motor Source	Hydraulic Servo
Size	1350 x 1030 x 1850
Weight	860KG
Mix Mode	Static Mixing
Work Style	Plunger Pump
Application	Silent, energy saving, data visualized

Advanced Technology Features

Premium design with high cost-performance, suitable for 20L and 200L drums
PLC control panel with high efficiency and convenient operation, featuring highly stable system
High-precision material measurement with A and B material cylinders using synchronous structural design to ensure pressure output balance
Pressure sensor configuration with ultra-pressure and material alarm, plus position transducer monitoring
A and B pressure regulating valve adjustment ensures matching ratio 1:1 output
Full hydraulic power system using international brand components for stability and high reliability
Effectively avoids leakage and contamination
Pneumatic control valve with color pump installed on host for easy disassembly and displacement
Convenient for various machine interchange and use, reducing color replacement frequency and waste
Easy to clean, energy saving, high efficiency, low noise operation
Suitable for transition application of various dual-component liquid silicone
High production efficiency when connected to LSR injection molding machines
Compatible with injection machinery from other brands

Professional Service from BETTER

Pre-Sale Service:
Provide investment budget and plant planning, complete solutions for machines and molds based on customer product requirements.

On-Sales Service:
Provide installation and new machine debugging services, free training for staff to operate and maintain machines independently.

After-Sales Service:
Timely dispatch of personnel to solve after-sales problems and technical challenges, priority product upgrading for previous users as required.
