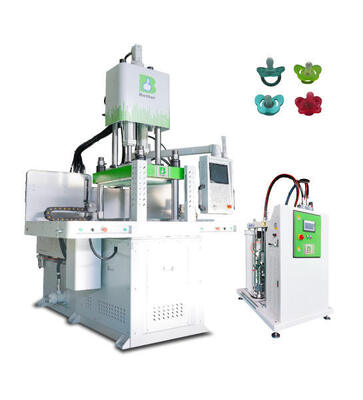

Food-Grade Silicone Baby Pacifier and Bottle Production Machine High-Efficiency Liquid Silicone Injection Molding Machine

Name: Food-Grade Silicone Baby Pacifier and Bottle Production Machine High-Efficiency Liquid Silicone Injection Molding Machine
Brand: Guangzhou S-guangyu Machinery &Equipment Co., Ltd
SKU: Better 1200SD-3RT
Price: 62000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Better

Certification: CE、ISO

Model Number: Better 1200SD-3RT

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD42000-USD82000per set

Packaging Details: Plastic film

Delivery Time: 50 days

Payment Terms: T/T

Supply Ability: 15 sets per month

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                Liquid Silicone Injection Molding Machine, High Efficiency Injection Molding Machine


Style:	Vertical	Economic Benefits:	Obvious--30-50% Electricity Can Be Saved
Warranty Time:	12 Months	Advantages:	High Efficiency

Style:	Vertical
Economic Benefits:	Obvious--30-50% Electricity Can Be Saved
Warranty Time:	12 Months
Advantages:	High Efficiency

Product Description

Food-Grade Silicone Baby Pacifier and Bottle Production Machine

High-Efficiency Liquid Silicone Injection Molding Machine

Key Features

High productivity with maximum time savings through parallel processing at multiple mold stations
Efficient automation with easily accessible mold area from all sides for complex production cell integration
Simple and precise insertion and holding of parts in cavities with horizontal mold parting line
Ergonomic operation with optimal table height eliminating need for raised work platforms
Short handling times with secure light curtain access, no two-handed operation required
Highly-sensitive injection process control for excellent mold part quality and reproduction
Energy savings through clamping pressure lock-in, low-friction guides, and intelligent servo hydraulic eco-drive

Technical Specifications

Model	BETTER 1200SD-3RT Vertical LSR Injection Molding Machine
Clamping Force	120 tons
Size	1290 × 560 mm
Maximum Mold Size	550 × 550 mm
Minimum Mold Height	120 mm
Mold Stroke	280 mm
Maximum Daylight	400 mm
Ejector Force	3 tons
Thimble Diameter	Φ25
Ejector Distance (Product)	300 mm
Maximum Hydraulic Pressure	140 kg/cm²
Cooling Water	1500-1800 liters/hr
Electrothermal	4 kW
Motor	15 kW
Dimensions (L×W×H)	2.28 × 2.6 × 3.12/3.86 m
Weight	7.4 tons

Liquid Silicone Processing Characteristics

Eliminates traditional rubber molding operations like mixing and pre-molding, saving manpower, resources, and equipment investment
Fully closed automatic processing ensures dimensional accuracy and internal quality, ideal for medical applications
Low viscosity (10-1000 pas) enables low injection pressure, producing flash-free products with minimal material waste
Excellent for large, complex, or ultra-thin products (0.5mm thickness, 100mm length)
Fast curing (160-220 seconds) enables short molding cycles and high production efficiency
Minimal back pressure requirements (less than 1.5MPa) due to excellent fluidity and low gas content
Thermal expansion coefficient results in 2-3% shrinkage after demolding and cooling
