Battery Silicone Seal Production Machine Bipolar Plate Seal Injection Molding Equipment

Name: Battery Silicone Seal Production Machine Bipolar Plate Seal Injection Molding Equipment
Brand: Guangzhou S-guangyu Machinery &Equipment Co., Ltd
SKU: Better 1200SD
Price: 62000.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Better

Certification: CE、ISO

Model Number: Better 1200SD

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD42000-USD82000per set

Packaging Details: Plastic film

Delivery Time: 40 days

Payment Terms: T/T

Supply Ability: 15 sets per month

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                Injection Molding Equipment, Bipolar Plate Seal Production Machine, Battery Silicone Seal Production Machine


Warranty:	1 Year	Use Material:	Liquid Silicone Rubber
Style:	Vertical	Economic Benefits:	Obvious--30-50% Electricity Can Be Saved

Warranty:	1 Year
Use Material:	Liquid Silicone Rubber
Style:	Vertical
Economic Benefits:	Obvious--30-50% Electricity Can Be Saved

Product Description

Battery Silicone Seal Production Machine Bipolar Plate Seal Injection Molding Equipment

S-guangyu provides comprehensive integrated solutions including machinery, molds, and support services for manufacturing medical parts and battery components.

Key Features

Independent double-cylinder injection system ensures injection stability and supports different glue types
Independent direct pressure clamping unit accommodates various mold thicknesses
Mechanical positioning device guarantees accurate positioning and mold protection
Independent system design offers flexible operation and supports single-mode production
Wide range of technical configuration options available

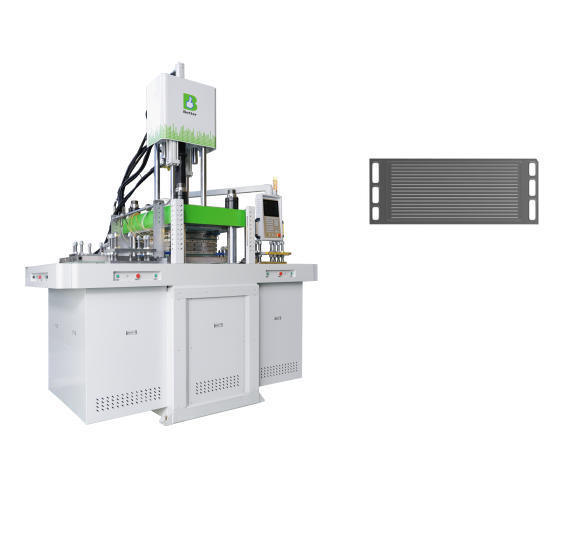

BETTER Vertical LSR Injection Molding Machine Specifications

Clamping Force	120 tons
Size	1290 × 560 mm
Max Mold Size	550 × 550 mm
Min Mold Height	260 + 50 mm
Mold Stroke	280 mm
Max Daylight	540 + 50 mm
Ejector Force	3 tons
Thimble Diameter	Φ25
Ejector Distance (Product)	105 (75) mm
Max Hydraulic Pressure	140 kg/cm²
Cooling Water	1500-1800 liters/hr
Heater Power	4 kW
Motor Power	15 kW
Dimension (L×W×H)	2.27 × 2.35 × 3.12 m
Weight	6 tons

Detailed Machine Information

Machine Type: Liquid Vertical Injection Molding Machine With Double Sliding Board

Application: LSR Machine For Silicone Products

Material Compatibility: Liquid Silicone Rubber

After-sales Service: Engineers Available To Service Machinery Overseas

Style: Vertical, Liquid Silicone Rubber Vertical Injection Moulding Machine

Plastic Type: Liquid Silicone

Machine Type: Hydraulic, Vertical

Key Selling Points: High-accuracy, Multifunctional, Competitive Price, High Productivity

Highlight: Vertical injection molding machine, low pressure molding machine
