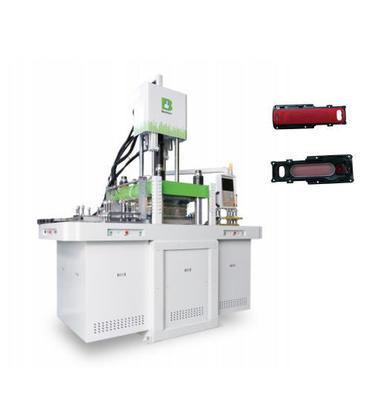

New Energy Vehicle Parts Battery Sealing Ring Plastic Injection Molding Machine LSR

Name: New Energy Vehicle Parts Battery Sealing Ring Plastic Injection Molding Machine LSR
Brand: Guangzhou S-guangyu Machinery &Equipment Co., Ltd
SKU: Better 1200SD-3RT
Price: 62,000.00 USD
Availability: InStock

Brand Name:	Better
Model Number:	Better 1200SD-3RT
MOQ:	1 SET
Price:	USD42000-USD82000per set
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

GuangZhou，China

Certification:

CE、ISO

Core Components:

Motor, PLC, Engine, Screw

Machinery Test Report:

Provided

Color:

Gray & Green

Motor:

Servo Motor

Operation:

Easy Operation

Style:

Vertical

Packaging Details:

Plastic film

Highlight:

lSR Plastic Injection Molding Machine

Battery Sealing Ring Plastic Injection Molding Machine

Vertical injection moulders

Product Description

Liquid Silicone Rubber New Energy Vehicle Parts Battery Sealing Ring Injection Molding Machine

S-guangyu provides integrated solutions including machinery, mold, and support services for manufacturing medical parts and new energy vehicle components.

Key Features

Independent double-cylinder injection system ensures injection stability and allows for different glue types
Independent direct pressure clamping unit accommodates various mold thicknesses
Mechanical positioning device guarantees accurate positioning and mold protection
Flexible independent system design enables single-mode production
Comprehensive range of technical options available

Specifications: BETTER 1200SD-3RT Vertical LSR Injection Molding Machine

Clamping Force	120 tons
Size	1290×560mm
Max Mold Size	550×550mm
Min Mold Height	120mm
Mold Stroke	280mm
Max Daylight	400mm
Ejector Force	3 tons
Thimble Diameter	Φ25
Ejector Distance (Product)	300mm
Max Hydraulic Pressure	140kg/cm²
Cooling Water	1500-1800 liters/hr
Electrothermal	4kW
Motor	15kW
Dimension (L×W×H)	2.28×2.6×3.12/3.86m
Weight	7.4 tons

System Highlights

Mould Clamping Device: Finite element analysis casting ensures strength. Movable plates and tail plates feature hinged lugs for enhanced rigidity.

Injection Device: Proprietary high-precision dosing machine ensures stable injection process with precise operation and intelligent control.

Control System: Full digital CAN control mode enables accurate pressure and flow control with easy operation and maintenance.

Manifold: Equipped with YUKEN solenoid valves for reliable sealing, stable operation, and long service life.

Main Die Cylinder: Forged steel construction provides exceptional stability.

Adjustable Ejector: Flexible design accommodates various mold characteristics.

PLC System: High-quality distribution box for reliable operation.

Operation Interface: User-friendly computer display reduces waiting time and simplifies operation.

LSR Process Features and Options

Special LSR injection unit with dedicated barrel and screw featuring static seal
Closed loop liquid barrel cooling system
Pin-type shut-off nozzle (pneumatic or hydraulic actuation)
LSR nozzle tip with static seal
Optional spring-lock positive shut-off design for tip assembly
Carriage decompression control
Integrated mold temperature control system
Insulated platens
Precision LSR closed loop process software for volumetric control
Mould vacuum system with pump, switch, interface and control software
Mould sweep software and device interface
Mould cold deck valve gate control system
Pressure-regulated air blow system
Pre-dosing assembly with temperature-controlled static mixer and purge valve
Complete LSR material delivery system
