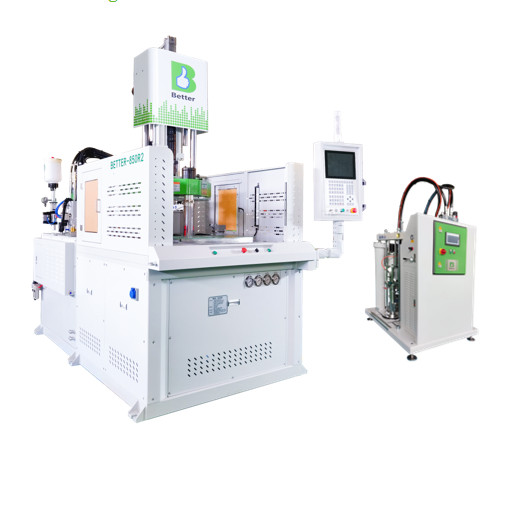

200ton LSR Injection Molding Machine with PLC Control

Name: 200ton LSR Injection Molding Machine with PLC Control
Brand: Guangzhou S-guangyu Machinery &Equipment Co., Ltd
SKU: BETTER-2000R2
Availability: InStock

Brand Name:	BETTER
Model Number:	BETTER-2000R2
MOQ:	1 SET
Price:	Negotiation
Payment Terms:	T/T,L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

GuangZhou，China

Certification:

CE、ISO

Gross Weight:

5.5-10ton

Dimensions:

3320 X 2630 X 3520 Mm

After Warranty Service:

Video Technical Support

Control System:

PLC Control

Color:

Gray & Green

Country Of Origin:

China

Work Principle:

Plunger Pump

Motor Source:

Hydraulic

Mix Mode:

Static Mixing/Static+Dynamic/Dynamic

Bucket Capacity:

20L/200L

Shot Volume Per 60s:

0 - 1500g

Packaging Details:

Plastic packaging

Highlight:

200ton LSR injection molding machine

PLC control injection molding machine

high-capacity plastic molding machine

Product Description

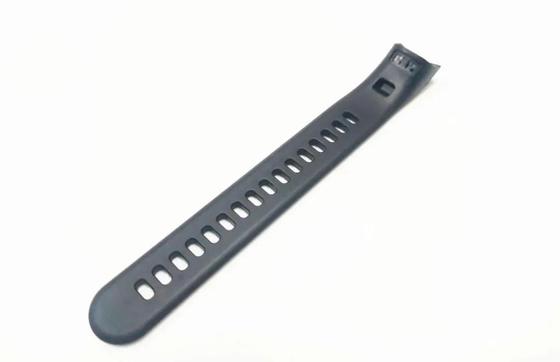

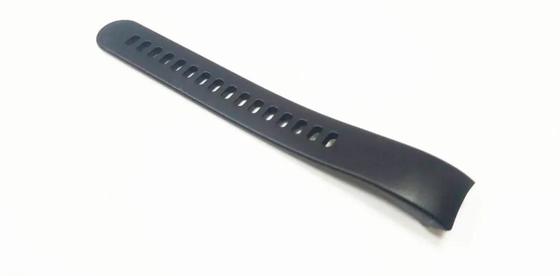

Flexible LSR Overmolding Machine for Smart Watch Strap Production

Product Overview

200ton LSR Injection Molding Machine with PLC Control, designed for precision manufacturing of smart watch straps and similar components.

Key Specifications

Attribute	Value
Clamping Force	200 tons
Max Mold Size	600×600 (750×500) mm
Mold Stroke	350 mm
Max Daylight	600+50 mm
Ejector Force	4.6 tons
Max Hydraulic Pressure	140 kg/cm²
Motor Power	26 kW
Dimensions (L×W×H)	3.32 × 2.63 × 3.52/4.47 m
Weight	12 tons

Injection Unit Features

Square hydraulic motor with position accuracy ≤0.1MM
Non-return valve between motor and tube
Bidirectional axial positioning (swing accuracy ≤0.05MM)
Barrel with LSR-specific spline design and pneumatic sealant shut-off nozzle
One-piece casting injection cylinder (5~10mm larger diameter than standard)
Specially designed LSR oil circuit (storage position accuracy ≤0.05MM)
Aluminum jacketed oil seal with bidirectional buffering
Internal installed pneumatic sealing needle nozzle with electronic measuring ruler (Gefran-Italy)
Optional Rexroth full closed loop servo valve for real-time monitoring

Key Advantages

Mould clamping device: Finite element analysis casting with hinged lugs for increased rigidity
Injection device: High precision dosing machine with intelligent control
Full digital CAN control: Precise system pressure and flow control
Manifold: YUKEN solenoid valve for reliable sealing
Main die cylinder: Forged steel construction for stability
Adjustable ejector: Flexible operation for different mold characteristics
High-quality PLC system: Distribution box for reliable operation
User-friendly interface: Computer operation display reduces waiting time
