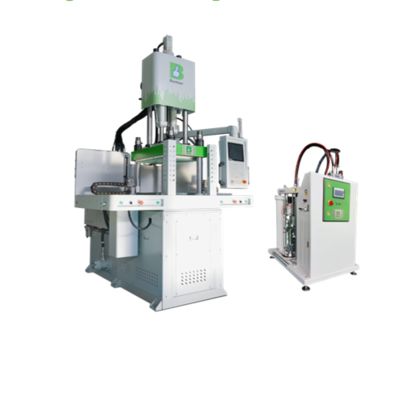

Servo Motor Hydraulic LSR Injection Molding Machine

Brand Name:	BETTER
Model Number:	BETTER-1600SD
MOQ:	1 SET
Price:	Negotiation
Payment Terms:	T/T,L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

GuangZhou，China

Certification:

CE、ISO

Type:

Injection Molding Machine

Condition:

New

Motor:

Servo Motor

After Sales Service:

Provided

Machine Type:

Hydraulic

Plastic Type:

Liquid Silicone

Work Principle:

Plunger Pump

Motor Source:

Hydraulic

Mix Mode:

Static Mixing/Static+Dynamic/Dynamic

Bucket Capacity:

20L/200L

Shot Volume Per 60s:

0 - 1500g

Packaging Details:

Packaging according to customer requirements

Highlight:

hydraulic LSR injection molding machine

servo motor LSR molding machine

LSR injection machine with servo motor

Product Description

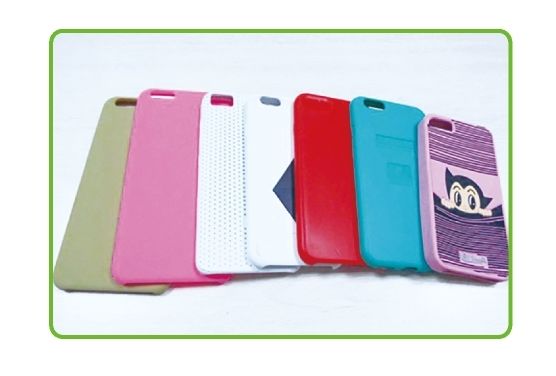

Integrated Silicone Mobile Phone Case Making Machine High Performance

Type	Injection molding machine
Condition	New
Motor	Servo Motor
After Sales Service	Provided
Machine Type	Hydraulic
Plastic Type	Liquid silicone

Integrated Silicone Mobile Phone Case Making Machine High Performance

LSR injection machine: vertical sliding / vertical rotary / horizontal etc.

Injection unit:

Square hydraulic motor: its position accuracy is ≤0.1MM;
Non-return valve between the motor and tube;
Bidirectional axial: positioning to avoid the wiggle of the screw; its swing accuracy is ≤0.05MM;
Barrel: LSR using; spline design; pneumatic sealant shut-off nozzle;
Injection cylinder: one-piece casting, its diameter is 5~10mm bigger than normal;
Oil circuit: specially design for LSR, its storage position accuracy is ≤0.05MM;
Oil pump: aluminum jacketed oil seal that installs easily and locate well; Oil pump with bidirectional buffering, which moves smoothly;
Dorsal bracket ring: protect the O-ring;
Air cylinder: internal installed pneumatic sealing needle nozzle; electronic measuring ruler (Gefran-Italy)
Optional-Rexroth full closed loop servo valve (real-time monitoring pressure, speed, back pressure and automatic feedback correction.)

The professional service from BETTER

Pre-sales service

Provide investment budget and plant planning;
Provide a whole set of solutions about machine and mold according to products that customers offered.

On-sales service

Provide installation and new machine debugging services for users who purchase BETTER machine
Free training for your staff who can operate and maintain the machine independently in your factory.

After-sales service

Timely dispatch personnel to the user's site to solve after-sales problems and solve difficult technical problems;
After product upgrading, the upgrading work of previous users shall be given priority as required;

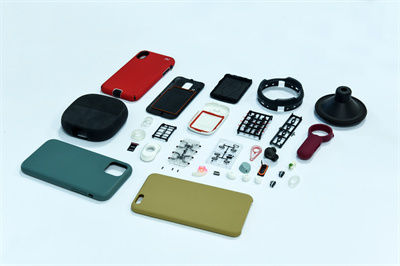

Almost every conceivable industry has discovered the opportunities that LSR and liquid injection molding processes offer for their products, including:
