Fully Automatic Ball Pen Making Machine 500T Low Noise SGS CE Certificated

Fully Automatic Ball Pen Making Machine 500T Low Noise SGS CE Certificated

    • Fully Automatic Ball Pen Making Machine 500T Low Noise SGS CE Certificated
    • Fully Automatic Ball Pen Making Machine 500T Low Noise SGS CE Certificated
    • Fully Automatic Ball Pen Making Machine 500T Low Noise SGS CE Certificated
    • Fully Automatic Ball Pen Making Machine 500T Low Noise SGS CE Certificated
  • Fully Automatic Ball Pen Making Machine 500T Low Noise SGS CE Certificated

    Product Details:

    Place of Origin: Ningbo,China
    Brand Name: LOG MACHINE
    Certification: ISO9001:2008, SGS,CE
    Model Number: 500S8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Packaging Details: Standard Export Package
    Delivery Time: 45 Days
    Supply Ability: 2000 Sets/Year
    Detailed Product Description
    Structure: Horizontal Plasticizing Way: Screw Type
    Automation: Automatic Clamping Way: Hydraulic & Mechanical
    Transportation: Ocean Clamping Force: 5000KN
    Injection Weight: 1494~2397g Opening Stroke: 820mm
    Space Between Tie Bars: 830*830(mm*mm) Energy Saving: Servo

    Fully Automatic Ball Pen Making Machine 500T Low Noise SGS CE Certificated

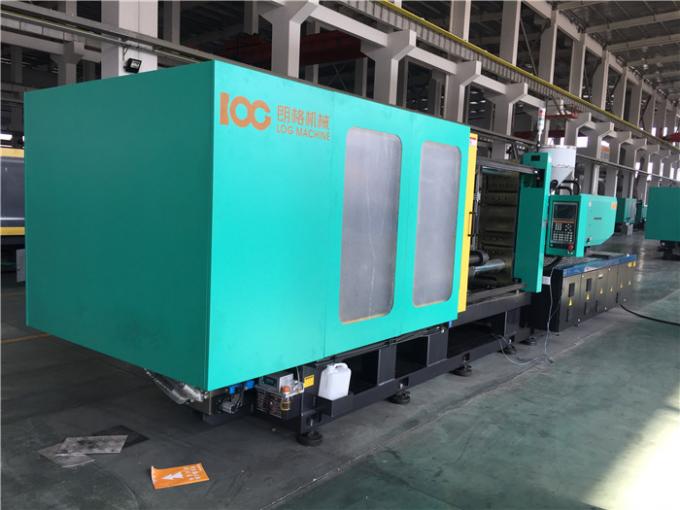

    LOG-500S8 Injection Molding Machine

    1LOG Injection Molding Machine Details

    Injection unit

    Double cylinder injection system
    High quality barrel and screw
    Multi stages of speed ,pressure and position for injection
    Holding on and charging
    Postion or time control changeover
    Screw position electronic ruler control
    Prevent the screw cold start
    Low speed high torque motor
    Close loop barrel temperature control
    Nozzle center adjust
    Stainless steel hopper
    Water cooling for hopper throat

    Clamping unit

    Five point double tiggle clamping unit
    Electronic ruler for mold open and close position
    Mechanical safety device
    Multi stage of mold open /close speed ,pressure and position
    Fast mold close
    Automatic mold height adjustment
    Low pressure mold protection
    Box model platen:T slots
    Auto centering lubrication system

    Hydraulics

    Propoffional pressure and speed control
    Oil suck filter
    Oil temperature control and alarm
    By-pass oil filter

    Some of the important features:

    Clamping system: Faster response, steable and high rigidity
    Injection system: Accurate and flexible, lower rejection rate
    Control system: Computer and simple operation, molding data memory system
    Power system: Energy saving, high efficient and precise

    1. Energy Saving
    2. Control simply and neatly
    3. High efficiency
    4. High speed system response and short molding cycle
    5. Reduce mold open and close crash to extend service time of machine and moldtool
    6. Largely decrease system oil pressure
    7. To extend service life of oil piping system,to reduce maintenance possiblities and save maintenance cost
    8. Higher requirement for hydraulic oil ;provides with imported high quality oil strainer

    LOG can provide our clients with general-purpose screws to meet the diverse requirements, but also for different types of plastics and processing characteristics of the product, Konger offer special types of screws to meet high qualiy and high precision requirment.
    Such as: UPVC, MPPA, PA, PC, CP, PPS, PET and other special screw.
    2. Parameter of LOG500S8 Machine

    INJECTIONLOG500
    ABC
    Shot volumecm³159020422550
    Shot weight (ps)G149419192397
    oz526784
    Max injection ratecm³/s357459573
    Screw diameterMm758595
    Plasticizing rateKg/h188256338
    Injection pressureMpa204159127
    Screw L:D ratio 22:121:118.7:1
    screw speedr/min0~125
    CLAMPING
    Clamping forceKn5000
    Opening strokeMm820
    Platen sizeMmXmm1180*1180
    Space between tie barsMmXmm830*830
    Mold thickness (Min--Max)Mm300~820
    Max.daylightMm1600
    Hydraulic ejection strokeMm210
    Hydraulic ejection forceKn111
    Power Unit
    Hydraulic system pressureMpa17.5
    Pump motorKw22+22
    Heating capacityKw35.4
    Number of temp control zones 5+ (nozzle)
    GENERAL
    Dry-cycle timesec5.2
    oil tank capacityL1150
    Machine dimensionsMxmxm9.25*1.85*2.0
    Machine weightkg20500


    3. Machine Information
