Wide Platen PET Injection Moulding Machine 90T Accommodate 8 - 48 Cavity Molds

Wide Platen PET Injection Moulding Machine 90T Accommodate 8 - 48 Cavity Molds

Wide Platen PET Injection Moulding Machine 90T Accommodate 8 - 48 Cavity Molds

Product Details:

Place of Origin: Ningbo,China
Brand Name: LOG MACHINE
Certification: ISO9001:2008, SGS,CE
Model Number: 90S8 TON PET

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Packaging Details: Standard Export Package
Delivery Time: 30 Days
Supply Ability: 2000 Sets/Year
Detailed Product Description
Structure: Horizontal Plasticizing Way: Screw Type
Automation: Automatic Clamping Way: Hydraulic & Mechanical
Computerized: Computerized Transportation: Ocean
Clamping Force: 900KN Injection Weight: 113g - 181g
Opening Stroke: 320mm Space Between Tie Bars: 360*360(mm*mm)
Special: PET Preform Use

Wide Platen PET Injection Moulding Machine 90T Accommodate 8 - 48 Cavity Molds​

LOG-90 PET Injection Molding Machine
1. The Characteristic Of LOG PET Special Machine

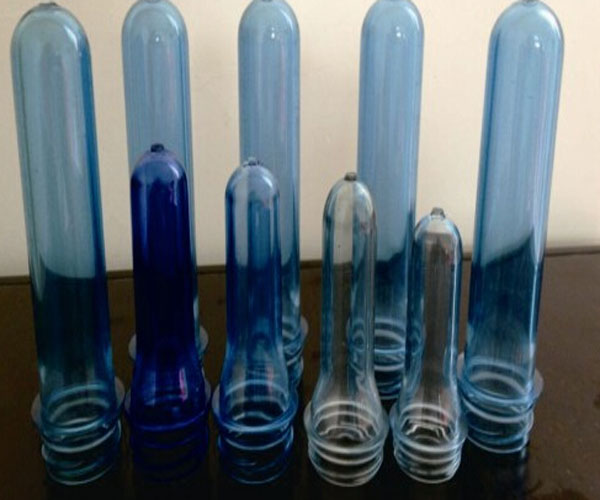

Preform system can accommodate from 8 up to 48 cavity molds on any standard preforms. As well as the injection molding machine, the package includes mold, robotic handling system, complete with integrated after-cooling station; granule drying system, recirculating air condition for the mould, and refrigeration system.The concept of the complete system is designed for maximum flexibility when changing from one preform variant to another. Because the mold can be easily modified and robotics adapted without problem, it is possible to change to a different size of preform in a relatively short time, meaning even small volumes of parts or unusual shapes can be produced economically.Two-stage injection unit consists of one screw for pre-plasticizing and one plunger for injection.Low A.A. levels and very high through put with outstanding melt quality are ensured by the injection unit's high-performance screw.The separate shooting pot can get a wider range of shot size. Without the use of check-ring, it can escape the unstable injection and increase the precision of shooting.

Features


■ Wide Platens with Large Tie Bar Spacing
■ Extended Ejector Stroke with High Force
■ Interface for Ejector Retract Verification
■ Auto Lubrication
■ SPI Knock Out Bar
■ Injection Unit on Linear Guide Ways
■ Special Screw for PET Processing
■ Higher Torque Hydromotor
■ Feed Throat Temperature Control
■ Swiveling Injection Unit
■ Electronically Controlled Variable Volume Pump
■ Heater Failure Detection & Current Monitoring
■ Pneumatic Mould Gate Valve with FRL Unit
■ Multilevel Password with Operator's Name
■ Statistical Process Control with Graphics


Optional Features

■ Double ejection hydraulic structure,according to the mold structure,which can improve production efficiency.
■ Double clamping hydraulic structure,according to the mold structure and peripheral equipment,which can significantly increase productivity.


2. LOG90 PET Machine Parameters

INJECTIONLOG90
ABC
Shot volumecm³113154181
Shot weight (ps)G106144170
oz456
Max injection ratecm³/s598095
Screw diameterMm303538
Plasticizing rateKg/h223645
Injection pressureMpa243179152
Screw L:D ratio 22:120:118:1
Screw speedr/min0~180
CLAMPING
Clamping forceKn900
Opening strokeMm320
Platen sizeMmXmm540*540
Space between tie barsMmXmm360*360
Mold thickness (Min--Max)Mm150~360
Hydraulic ejection strokeMm100
Hydraulic ejection forceKn31
Power Unit
Hydraulic system pressureMpa16
Pump motorKw9
Heating capacityKw6.5
Number of temp control zones 3+ (nozzle)
GENERAL
Dry-cycle timesec1.1
Oil tank capacityL160
Machine dimensionsMxmxm4.2*1.1*1.7
Machine weightkg2800


3. LOG PET Machines Configuration

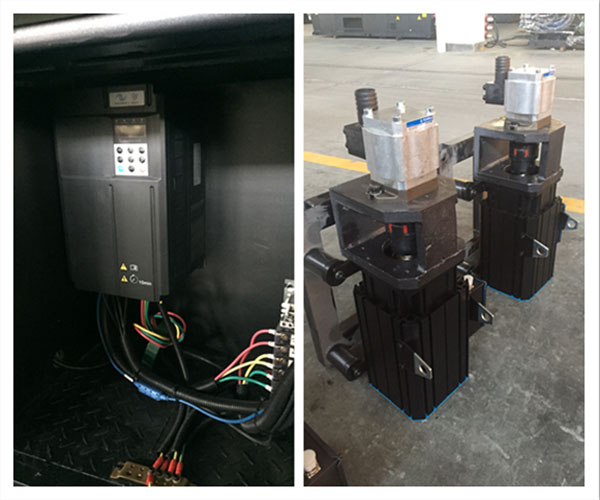

S8 Series Core Configuration

Wide Platen PET Injection Moulding Machine 90T Accommodate 8 - 48 Cavity Molds
