18000Kn PVC Pipe Fitting Injection Molding Machine With High Strength Frame

18000Kn PVC Pipe Fitting Injection Molding Machine With High Strength Frame

18000Kn PVC Pipe Fitting Injection Molding Machine With High Strength Frame

Product Details:

Place of Origin: Ningbo,China
Brand Name: LOG MACHINE
Certification: ISO9001:2008, SGS,CE
Model Number: 1800A8 PVC

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Packaging Details: Standard Export Package
Delivery Time: 30 Days
Supply Ability: 2000 Sets/Year
Detailed Product Description
Structure: Horizontal Plasticizing Way: Screw Type
Automation: Automatic Clamping Way: Hydraulic & Mechanical
Computerized: Computerized Transportation: Ocean
Clamping Force: 18000KN Injection Weight: 8495~11310g
Opening Stroke: 1610mm Space Between Tie Bars: 1550*1430(mm*mm)
Special: PVC Fittings Use

18000Kn PVC Pipe Fitting Injection Molding Machine With High Strength Frame ​



LOG-1800A8 PVC Injection Molding Machine
1. About LOG Machine



■ It has the same features with all-electric machine that there is power consumption with machine running. Power supplies for machine action only without extra power waste so it absolutely reaches energy saving target.Servo system saves energy up to 40% than variable pump and up to 60% than fixed pump system.
■ Available high toque output hydraulic system pump driving with encoders of pressure and RPM feedback running through the operation sequences fully close looped.
■ There is fast response with less than 0.1 second and high repetition precision & linearity less than 0.1%.
■ Alternative air cool hydraulic radiator used for model less .

Paralleled double carriage structure, avoid nozzle moving left and right, avoid melt leaking out on the touching surface.



Key Features

■ Chrome plated specialized PVC components, which offer best results and increase the life of the machine
■ Widened safety door designs, with double core pulling system
■ Forced cooling of the barrel by compressed air through air channels in individual zones
■ Enlarged hydraulic motor
■ Oil and water cooling systems in the screw barrel


Others

■ Dedicated PVC Machine
■ Hydraulic Injection Moulding Machine
■ Available in a range of 90 to 2200Ton


2. LOG 1800A8-PVC Machine Parameters:

Injection Unit LOG1800
  A B C
Shot volume cm³ 8495 9852 11310
Shot weight (ps) G 7730 8965 10292
  oz 274 318 365
Max injection rate cm³/s 1128 1308 1502
Screw diameter Mm 130 140 150
Plasticizing rate Kg/h 500 543 594
Injection pressure Mpa 164 142 123
Screw L:D ratio   24:1 22.3:1 20.8:1
Screw speed r/min 0~80
Clamping Unit
Clamping force Kn 18000
Opening stroke Mm 1610
Platen size MmXmm 2230*2100
Space between tie bars MmXmm 1550*1430
Mold thickness (Min--Max) Mm 700~1500
Hydraulic ejection stroke Mm 400
Hydraulic ejection force Kn 318
Power Unit
Hydraulic system pressure Mpa 16
Pump motor Kw 37+37+30+30
Heating capacity Kw 95.05
Number of temp control zones   6+ (nozzle)
General Data
Dry-cycle time sec 18
Oil tank capacity L 3000
Machine dimensions Mxmxm 14.2*3.4*5.1

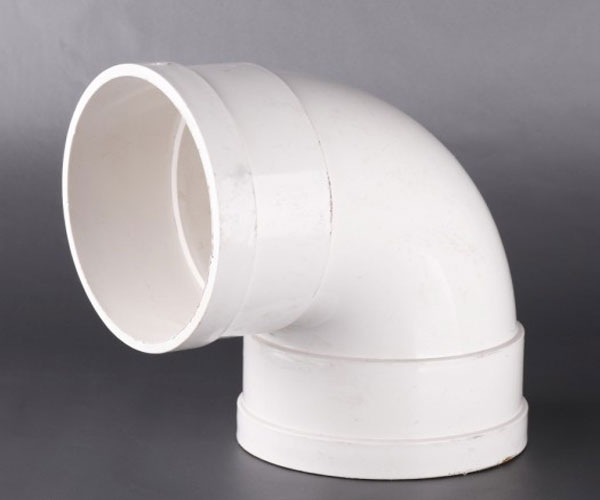

3. The PVC Machine's Part Of Configurations And Related Products:
 18000Kn PVC Pipe Fitting Injection Molding Machine With High Strength Frame
18000Kn PVC Pipe Fitting Injection Molding Machine With High Strength Frame
Feel hard to find an injection molding machine for specific productions?LOG machine can fulfill your requirement --------custom-tailored ,appropriate price,professional technical and after-sales service.
LOG MACHINE,Be absorbed in good future!
Download The E-catalog Now18000Kn PVC Pipe Fitting Injection Molding Machine With High Strength Frame
