All Electric Energy Saving Injection Molding Machine 210 Ton Ceramic Heating Loop

All Electric Energy Saving Injection Molding Machine 210 Ton Ceramic Heating Loop

    • All Electric Energy Saving Injection Molding Machine 210 Ton Ceramic Heating Loop
    • All Electric Energy Saving Injection Molding Machine 210 Ton Ceramic Heating Loop
  • All Electric Energy Saving Injection Molding Machine 210 Ton Ceramic Heating Loop

    Product Details:

    Place of Origin: Ningbo,China
    Brand Name: LOG MACHINE
    Certification: ISO9001:2008, SGS,CE
    Model Number: LOG-210S8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Packaging Details: Standard Export Package
    Delivery Time: 45 Days
    Supply Ability: 2000 Sets/Year
    Detailed Product Description
    Structure: Horizontal Plasticizing Way: Screw Type
    Automation: Automatic Clamping Way: Hydraulic & Mechanical
    Transportation: Ocean Clamping Force: 2100KN
    Injection Weight: 347~520g Opening Stroke: 480mm
    Space Between Tie Bars: 510*510(mm*mm)

    All Electric Energy Saving Injection Molding Machine 210 Ton Ceramic Heating Loop


    LOG-210S8 Injection Molding Machine Detials
    With years of experiences on manufacture injection molding machine, LOG MACHINE keep up the market demand, adopt foreign advanced design concept. LOG brand is customer oriented and based on a modular- design engineering ideas, providing resonable advice and the perfect solution for injection projects. We offer qualified service and provide customer-needed injection molding machine in all different spheres of industry, including in the food packaging industry, household products industry, household appliance industry, electronis industry, auto industry, pipe fittings, toys, gifts and other industries.

    LOG-210S8 Machine Specification:

    INJECTIONLOG210
    ABC
    Shot volumecm³381470569
    Shot weight (ps)G347429520
    oz121518
    Max injection ratecm³/s133165200
    Screw diameterMm455055
    Plasticizing rateKg/h82117141
    Injection pressureMpa217176145
    Screw L:D ratio 22:120:118:1
    screw speedr/min0~200
    CLAMPING
    Clamping forceKn2100
    Opening strokeMm480
    Platen sizeMmXmm745*745
    Space between tie barsMmXmm510*510
    Mold thickness (Min--Max)Mm200~550
    Max.daylightMm1030
    Hydraulic ejection strokeMm150
    Hydraulic ejection forceKn67
    Power Unit
    Hydraulic system pressureMpa17.5
    Pump motorKw18.5
    Heating capacityKw13.1
    Number of temp control zones 4+ (nozzle)
    GENERAL
    Dry-cycle timesec4.5
    oil tank capacityL310
    Machine dimensionsMxmxm5.4*1.32*2.1
    Machine weightkg6500


    Some of the important machine features:
    Clamping system: Faster response, steable and high rigidity
    Injection system: Accurate and flexible, lower rejection rate
    Control system: Computer and simple operation, molding data memory system
    Power system: Energy saving, high efficient and precise
    Metal parts: The thickness of our frame, metal plate and wallboard are thicker than other company.
    Ceramic heating loop: Uniform heating, better thermal insulation properties so good for production
    Visiable lubrication system: on time clean, avoid cast steel parts abrasion and broken.
    Oil treasure: Filter of hydraulic oil,good for pump and valves
    Long working life: Imported spare parts and updated version
    Aftersales service: Professional & timely

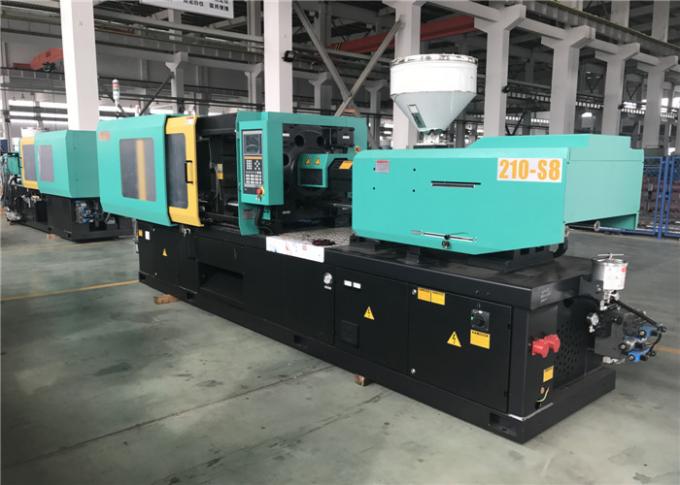

    The  Machine
    All Electric Energy Saving Injection Molding Machine 210 Ton Ceramic Heating Loop

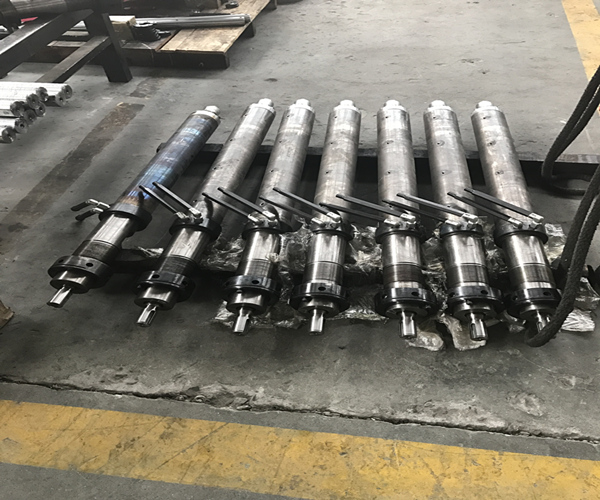

    The screw and barrel
    All Electric Energy Saving Injection Molding Machine 210 Ton Ceramic Heating Loop

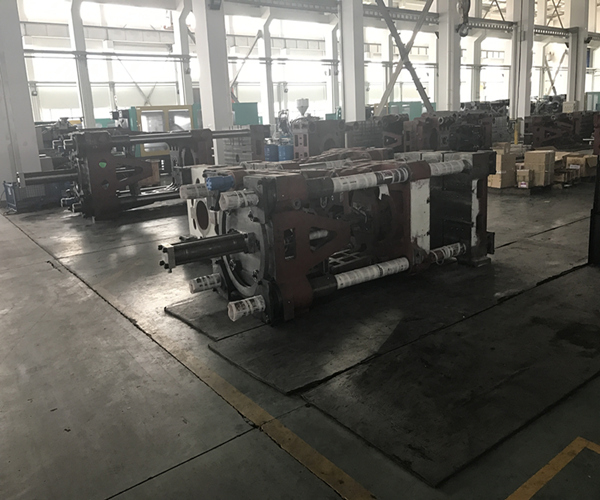

    The clamping unit
    All Electric Energy Saving Injection Molding Machine 210 Ton Ceramic Heating Loop

    LOG MACHINE with top-ranking quality & services wins customers and shows the innovation & foresight to the world !
    Download The E-catalog NowAll Electric Energy Saving Injection Molding Machine 210 Ton Ceramic Heating Loop
